Lexmark MS825 Service Manual

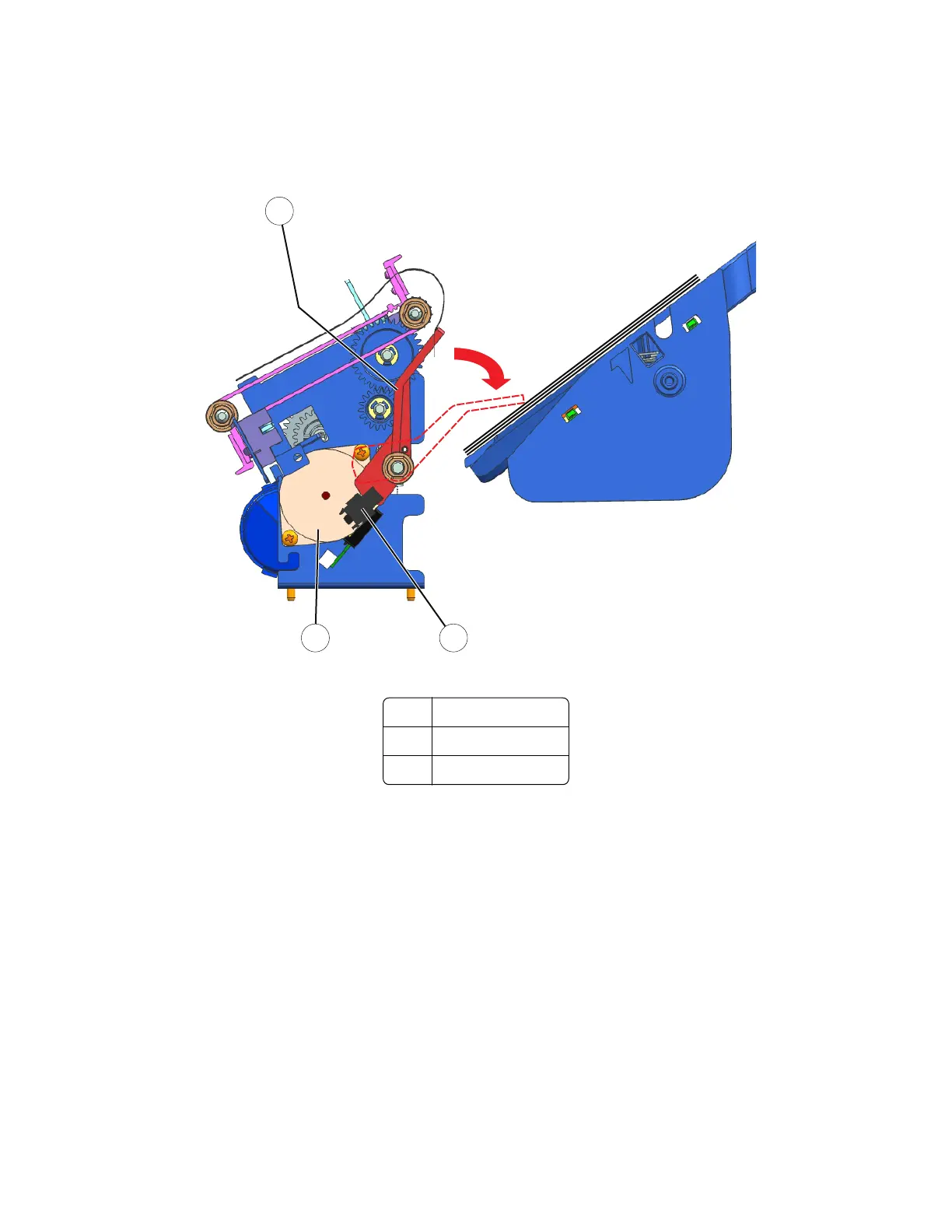

SHPF bin clamp drive
1
23
1 Bin clamp
2 Sensor (bin clamp)
3 Motor (bin clamp)
For each sheet that is ejected to the bin, the bin clamp lowers and holds the paper stack. If the level of the
paper stack on the bin reaches the sensor (bin full), then the elevator bin will lower to accommodate more
sheets.
The motor (bin clamp) controls the bin clamp. The clamp is detected at its home position by the sensor (bin
clamp).
4064
Theory of operation
912
