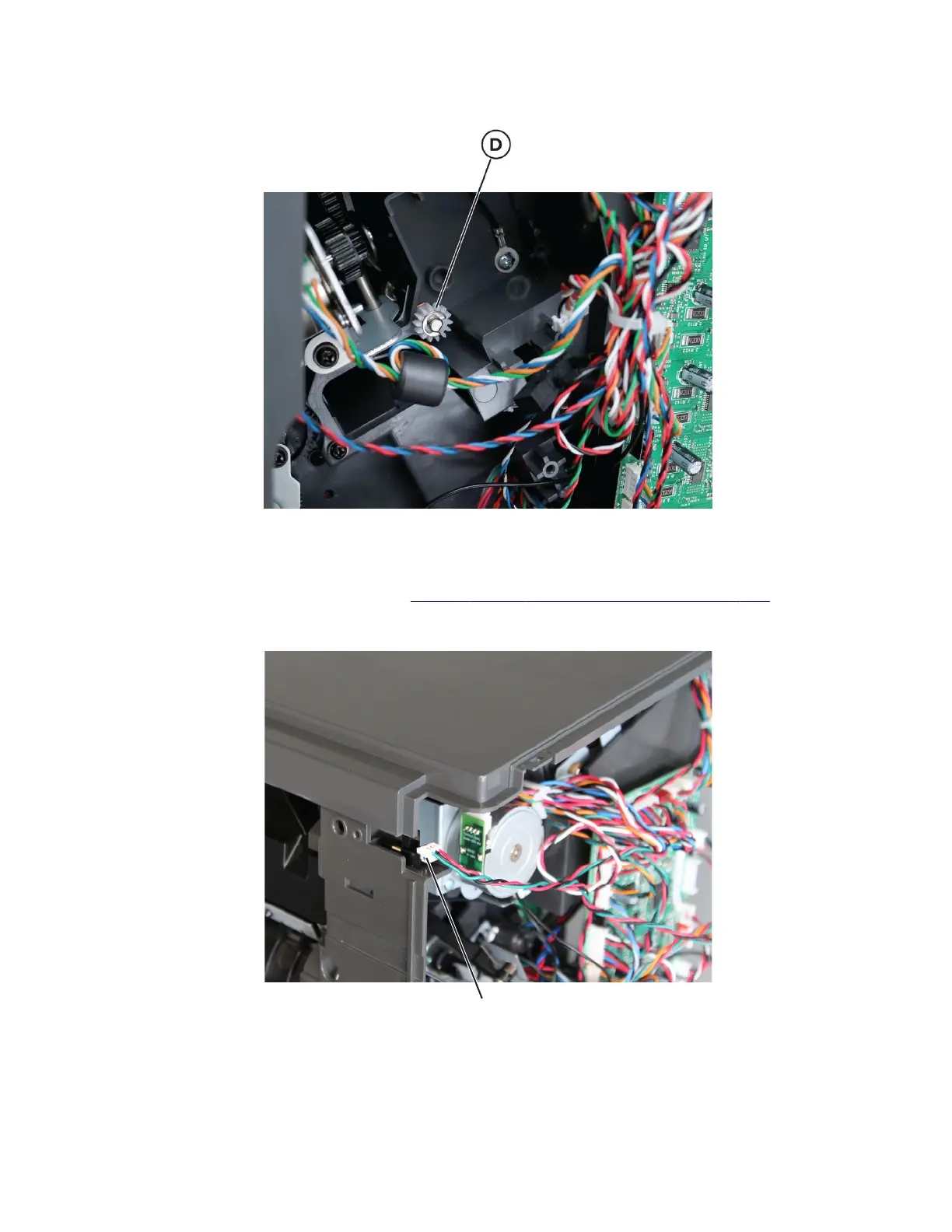

5 Remove the gear (D).
Sensor (staple finisher rear door interlock) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Disconnect the sensor cable (A).
A
3 Release the sensor latches, and then remove the sensor.
4064
Parts removal
612
