Output expander lower interface cable removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.

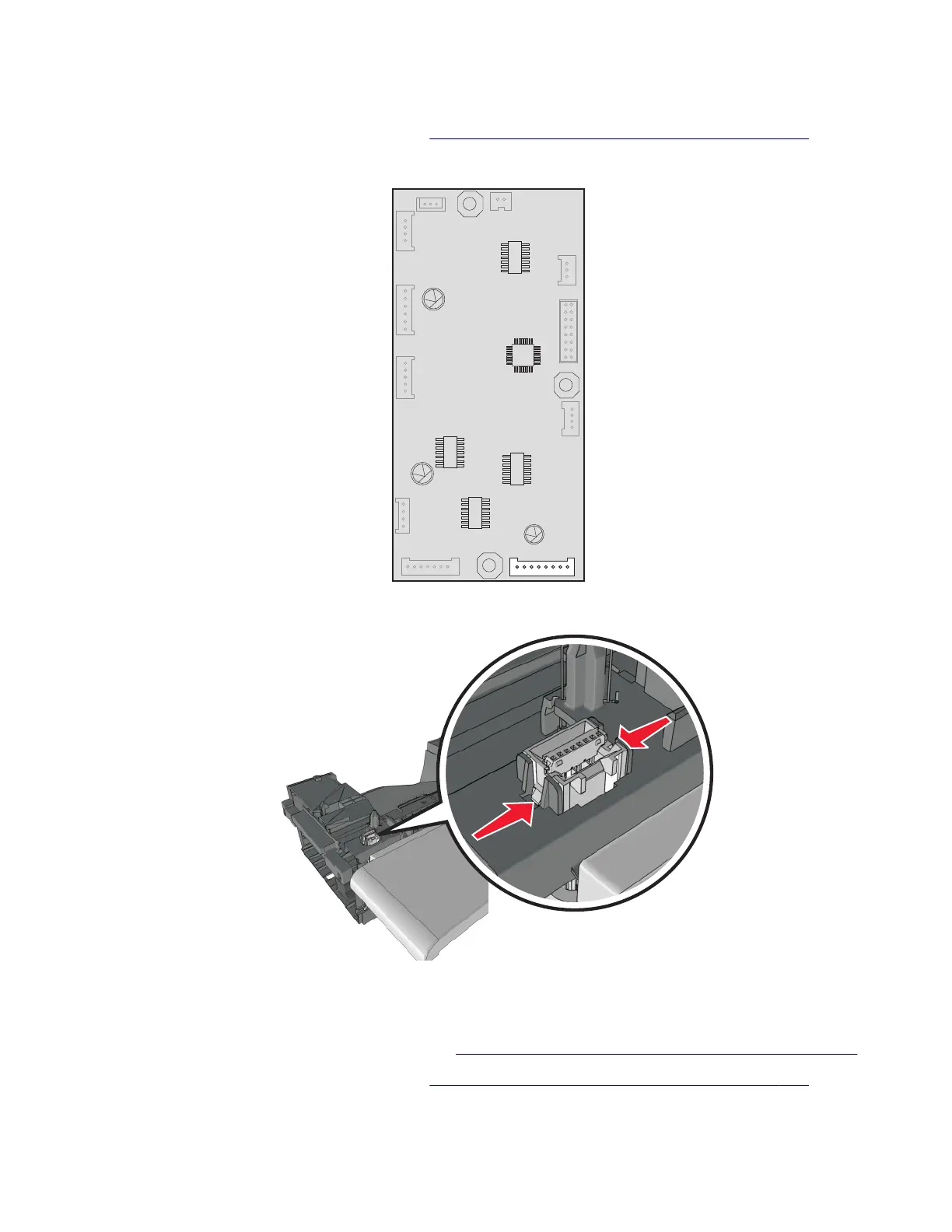

2 Disconnect the cable J1 from the controller board.
3 Push the latches to release, and then remove the cable.
Output expander upper interface cable removal
1 Remove the output expander sensor cover. See “Output expander sensor cover removal” on page 519.
2 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
4064
Parts removal
525
