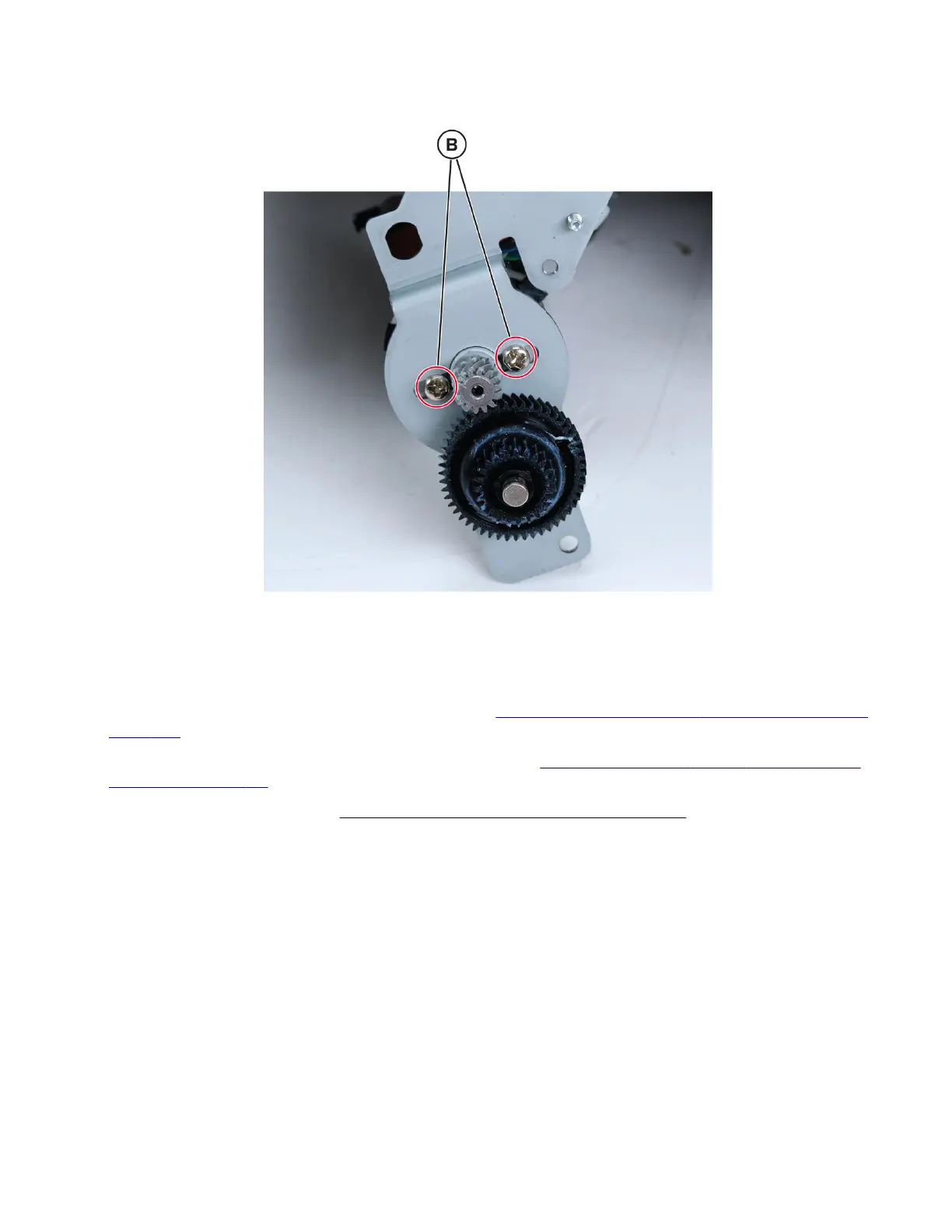

4 Behind the motor bracket, remove the two screws (B).
5 Remove the motor.
SHPF diverter plunger assembly removal
1 Remove the staple, hole punch finisher left cover. See “Staple, hole punch finisher left cover removal” on
page 699.
2 Remove the staple, hole punch finisher interface cable. See “Staple, hole punch finisher interface cable
removal” on page 711.
3 Release the motor bracket. See “Motor (SHPF transport) removal” on page 713.
