2100-sheet tray bellcrank removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.

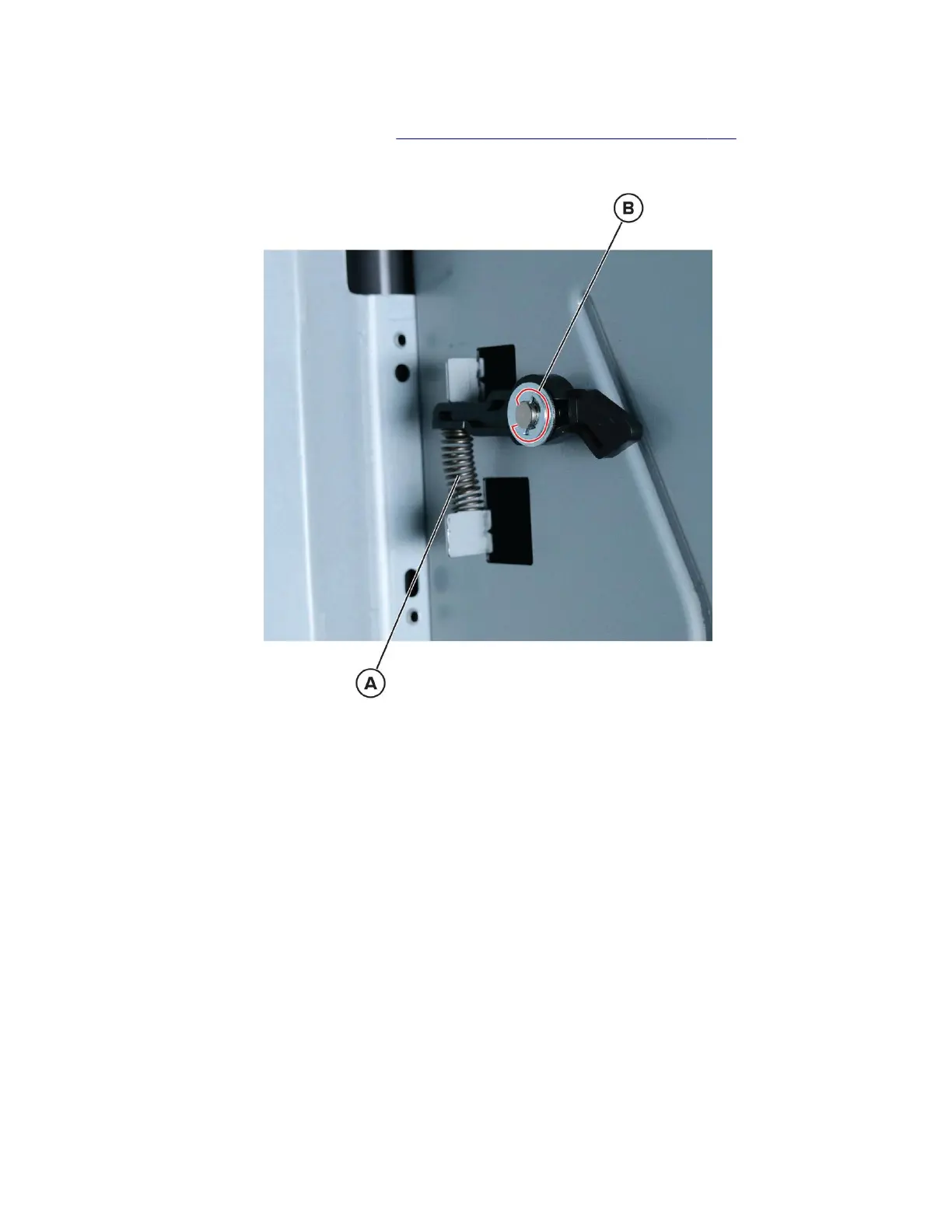

2 Remove the spring (A), and then remove the E-clip (B).
3 Remove the bellcrank.
4064
Parts removal
488
