Staple finisher paddle gear removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Remove the staple finisher interface cable. See “Staple finisher interface cable removal” on page 595.

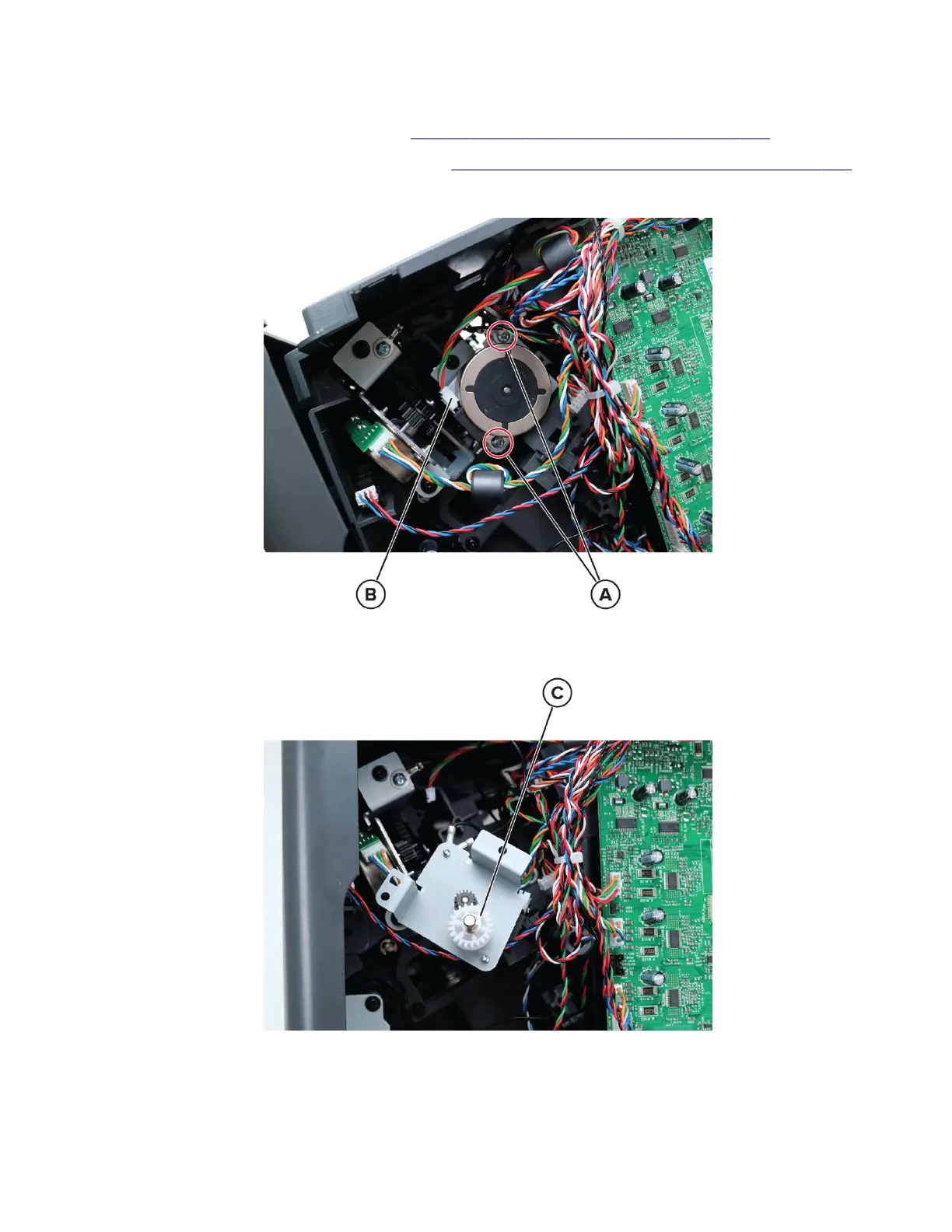

3 Remove the two screws (A), disconnect the cable (B), and then release the motor bracket.
4 Behind the motor bracket, remove the gear (C).
