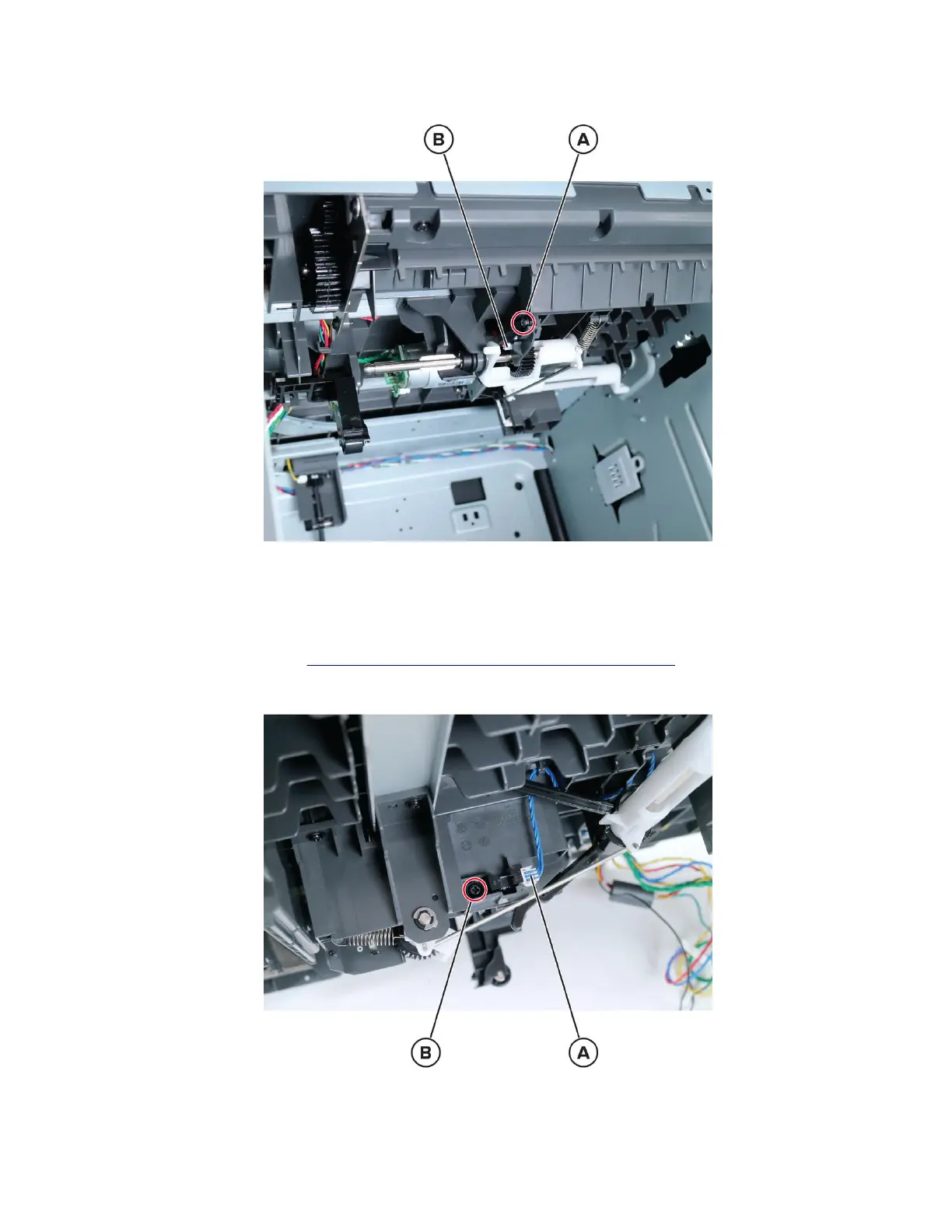

3 Remove the screw (A), and then disconnect the sensor cable (B).
4 Remove the sensor.
Sensor (2100-sheet tray paper present) removal
1 Remove the top cover. See “2100-sheet tray top cover removal” on page 479.
2 Disconnect the sensor cable (A), and then remove the screw (B).
3 Remove the sensor.
4064
Parts removal
492
