Motor (250‑ and 550-sheet tray transport) removal
1 Remove the 250‑ and 550-sheet tray left cover. See “250‑ and 550-sheet tray left cover removal” on
page 496.

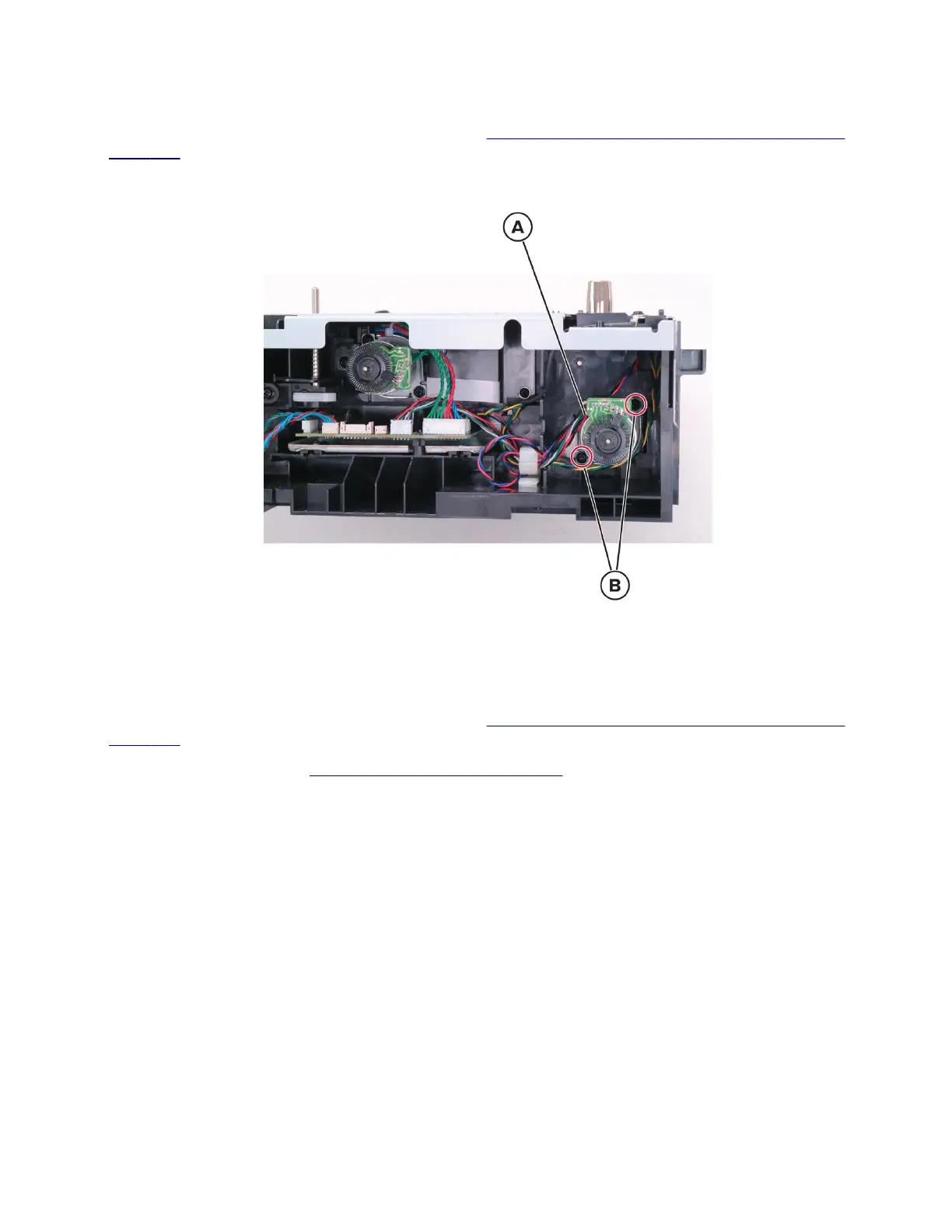

2 Disconnect the cable (A), and then remove the two screws (B).
3 Remove the motor.
250‑ and 550-sheet tray paper feeder removal
1 Remove the 250‑ and 550-sheet tray left cover. See “250‑ and 550-sheet tray left cover removal” on
page 496.
2 Remove the pick roller. See “Pick roller removal” on page 503.
4064
Parts removal
504
