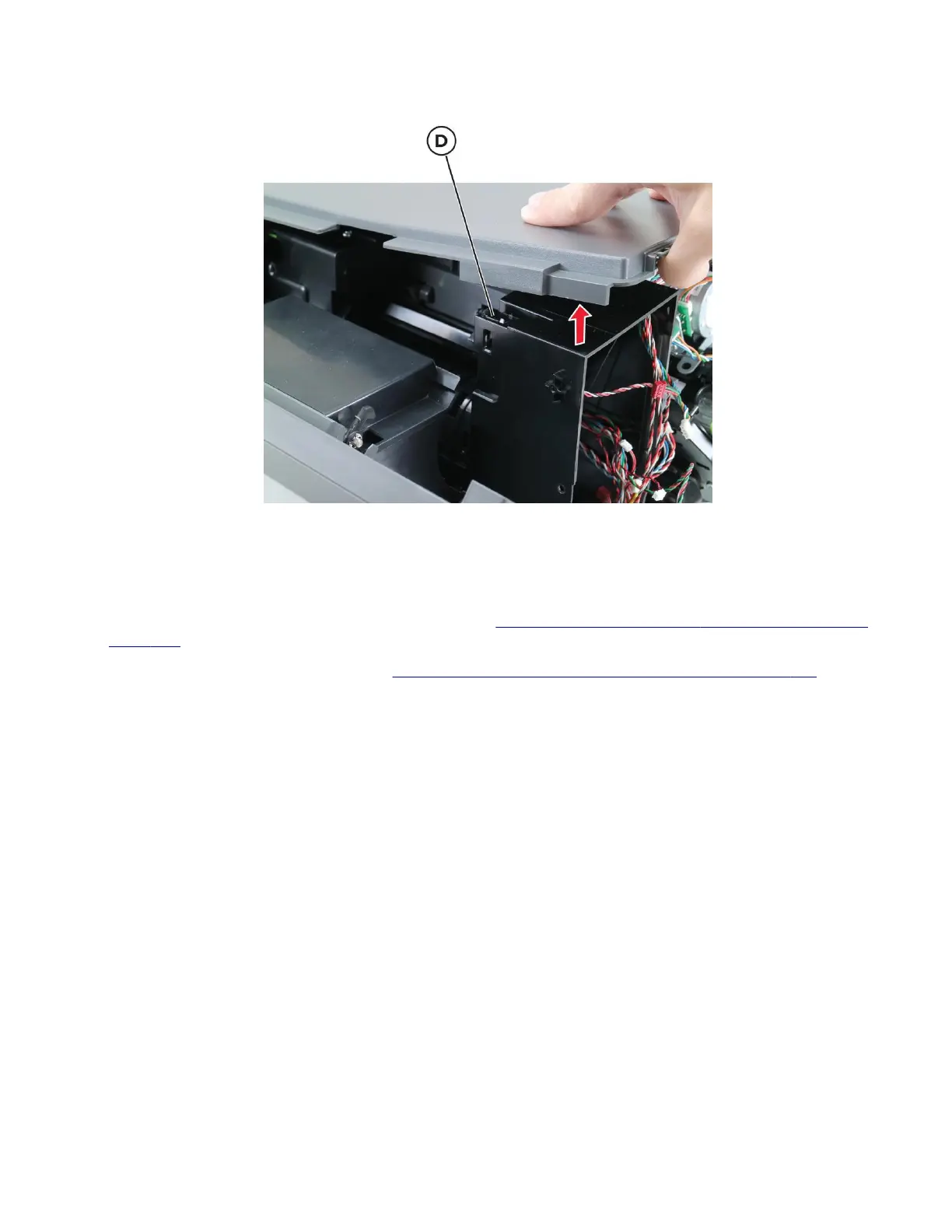

6 Slightly lift the top cover, and then remove the sensor retainer (D).
7 Remove the sensor.
Punch drive gears removal
1 Remove the staple, hole punch finisher left cover. See “Staple, hole punch finisher left cover removal” on
page 699.
2 Remove the HPU controller board. See “Sensor (SHPF rear door interlock) removal” on page 718.
4064
Parts removal
720
