2100-sheet tray paper feeder removal
1 Remove the 2100-sheet tray top cover. See “2100-sheet tray top cover removal” on page 479.
2 Remove the 2100-sheet tray pick roller.

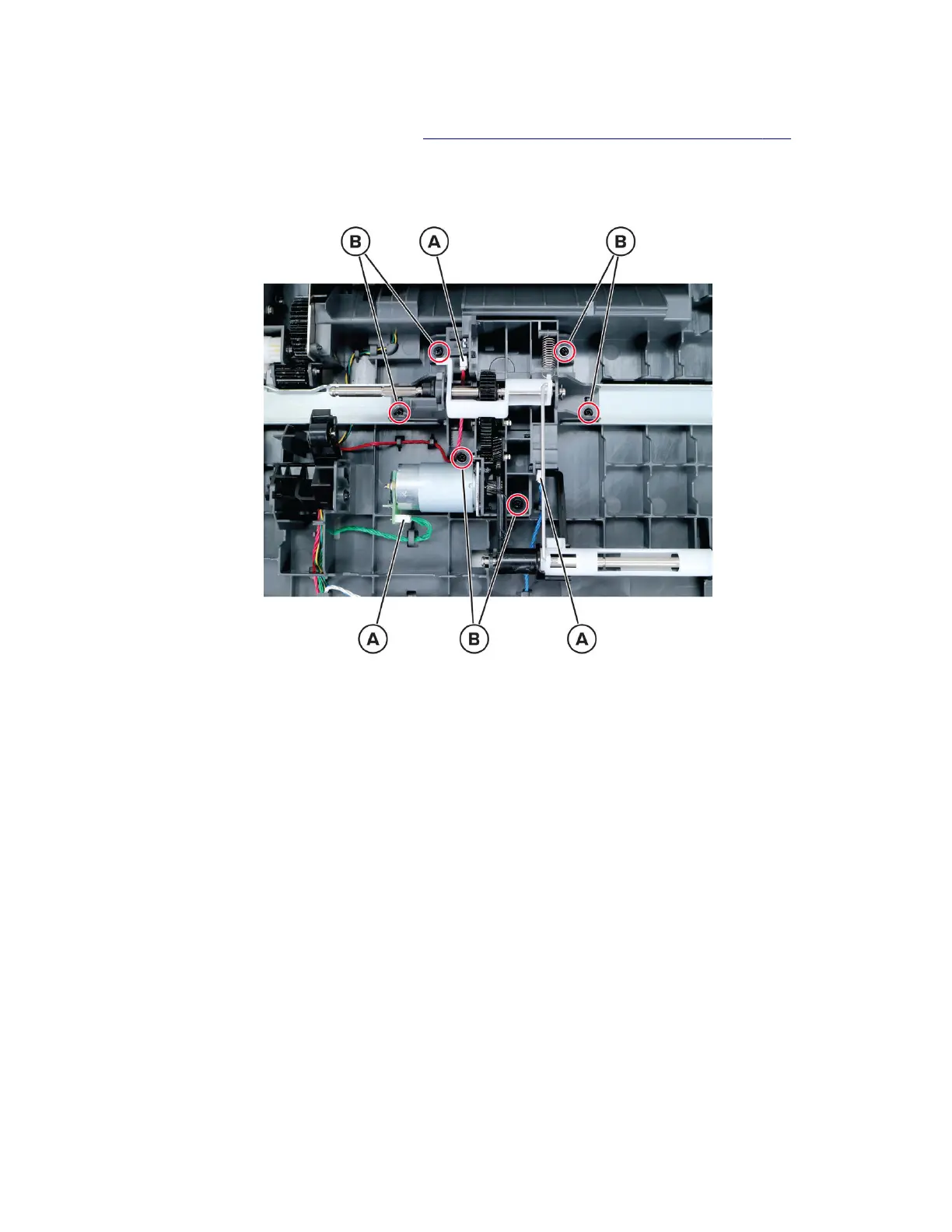

3 Disconnect the cables (A), and then remove the six screws (B).
4064
Parts removal
493
