3 Remove the rear door assembly.
Staple
finisher
left cover removal
Note: This part is not a FRU.

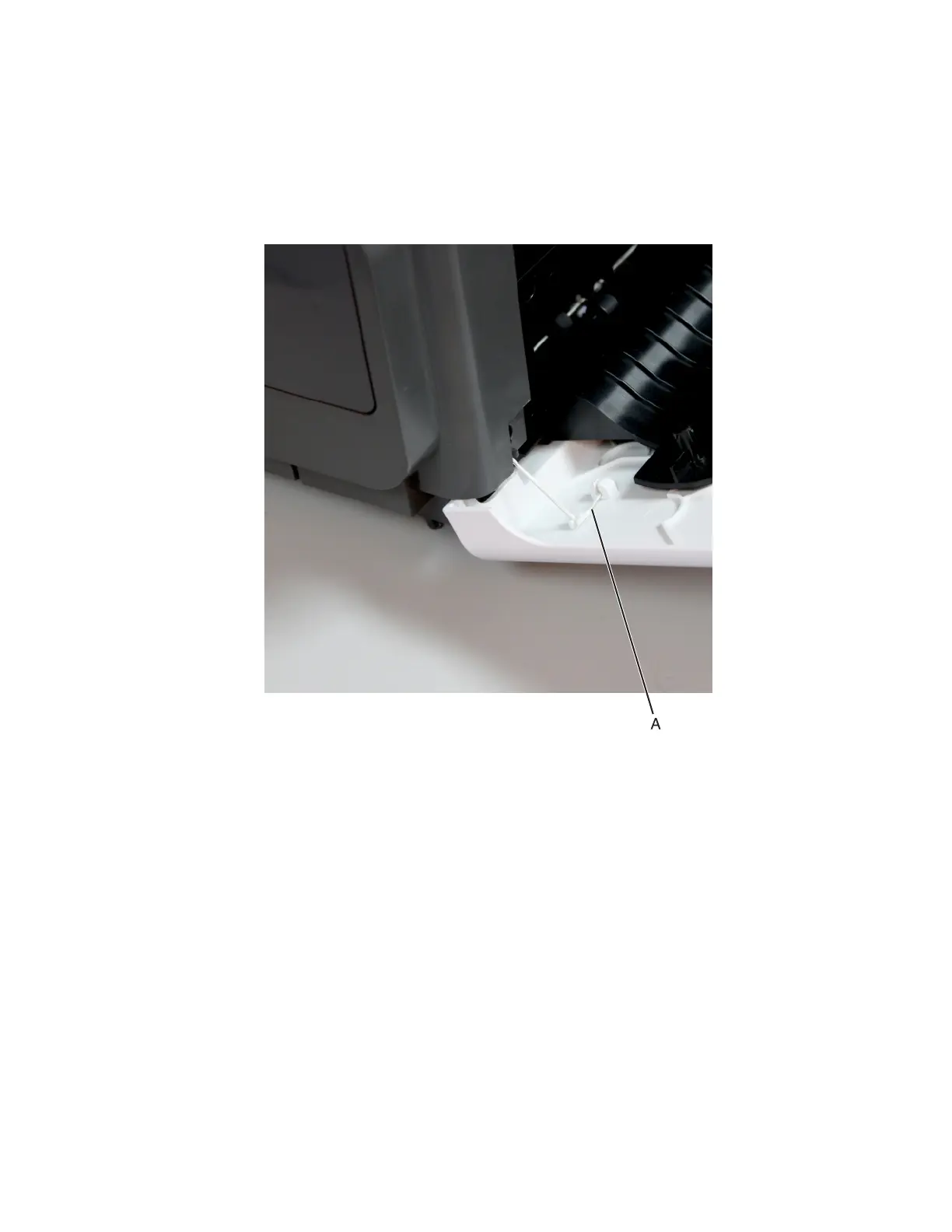

1 Open the rear door, and then detach the string (A) from the rear door.
Note: Fasten the string end (B) to the rear side to prevent it from recoiling into the interior of the staple
finisher.
4064
Parts removal
584
