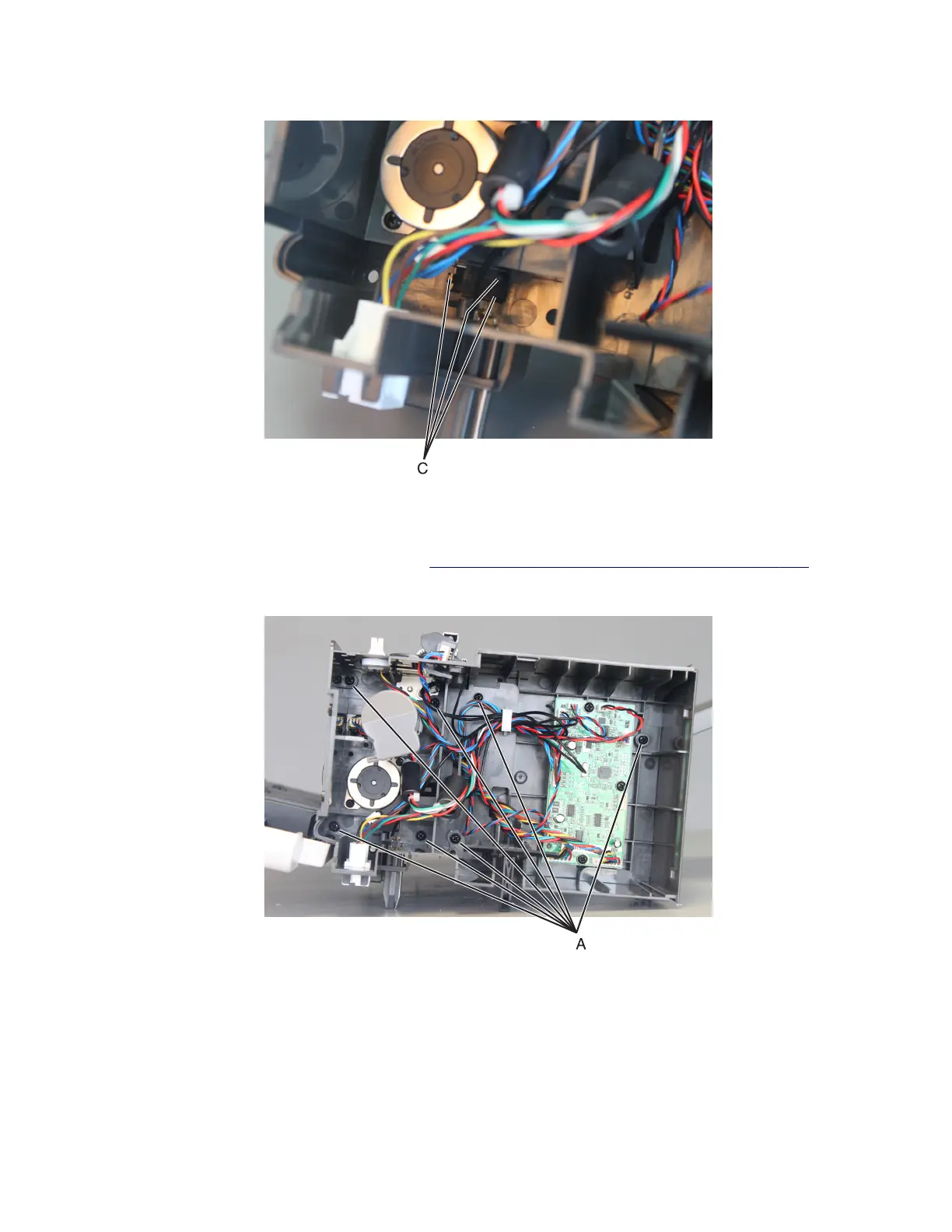

4 Pry the latches (C) to release, and then remove the sensor.
Output expander diverter spring removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A) from the frame.
4064
Parts removal
537
