Sensor (2100-sheet tray pick) removal

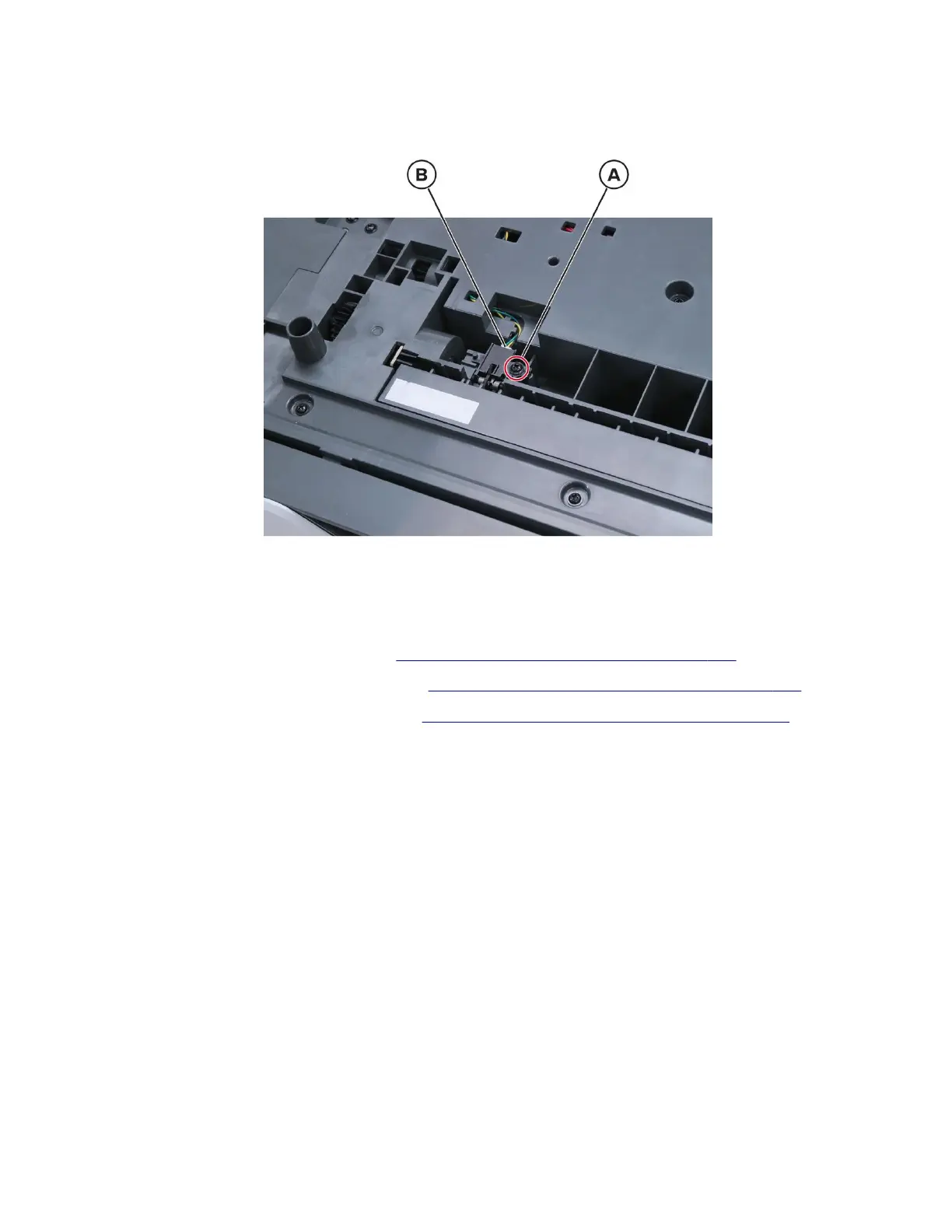

1 Remove the screw (A), and then disconnect the cable (B).
2 Remove the sensor.
2100-sheet tray controller board removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray left cover. See “2100-sheet tray left cover removal” on page 473.
4064
Parts removal
483
