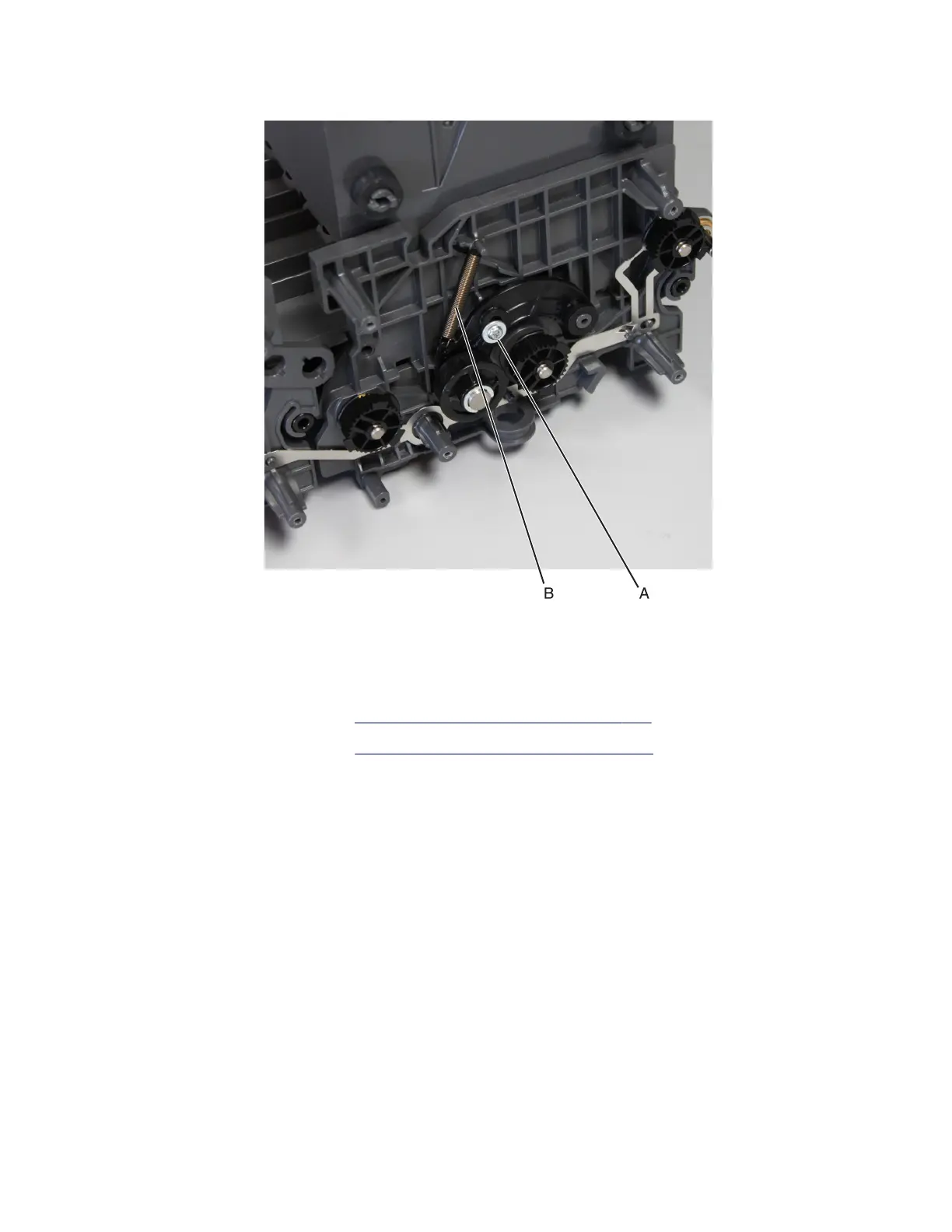

5 Remove the screw (A), and then unhook the spring (B).
6 Remove the belt tensioner.
HCOE diverter plunger assembly removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 546.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
4064
Parts removal
564
