Lexmark MS825 Service Manual

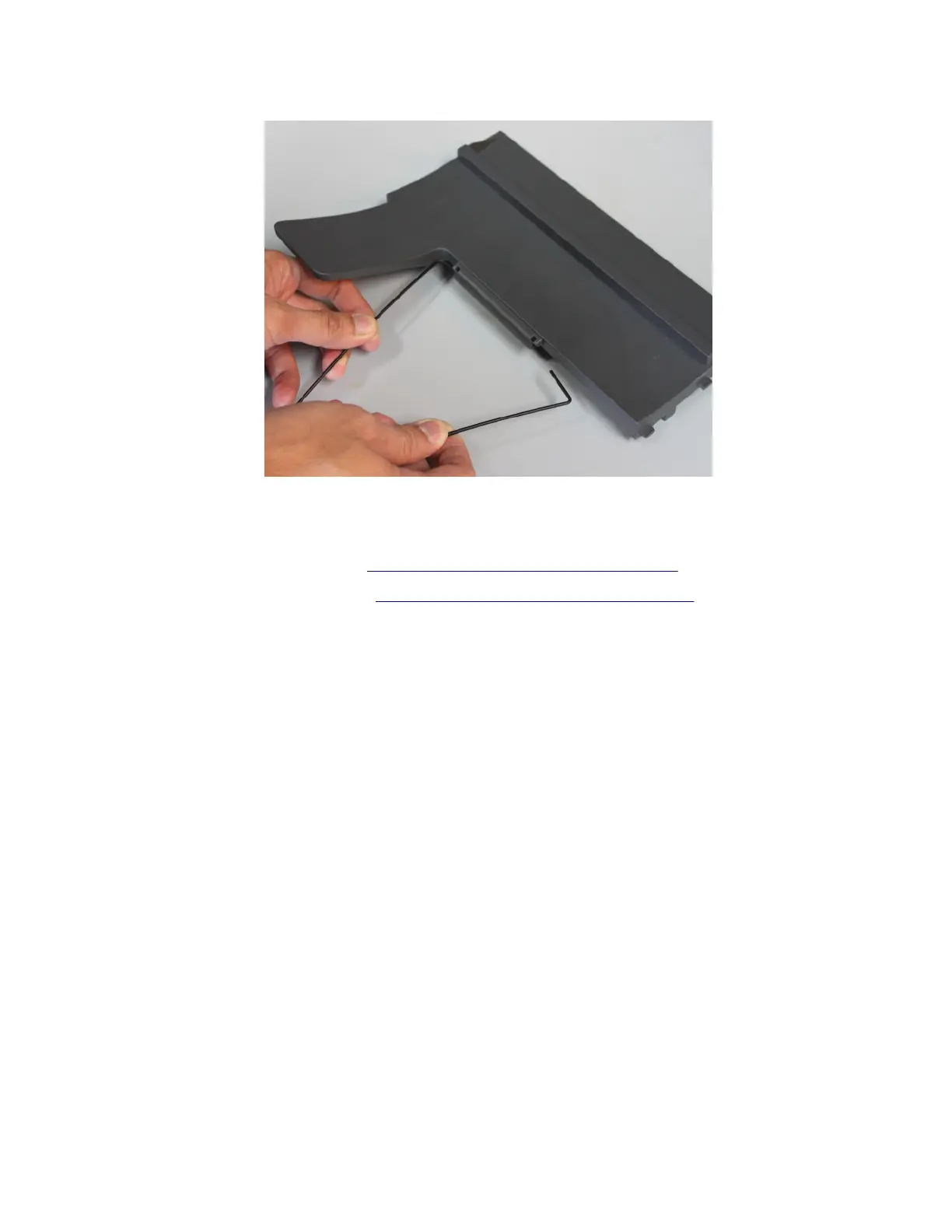

2 Release the mud bail flap from the bin cover, and then remove.
Mailbox spring with string removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 648.
2 Remove the mailbox right cover. See “Mailbox right cover removal” on page 651.
3 Remove the spring (A) with string.
Note: Pay attention to the original position of the string. The string on the pulley is wound clockwise.
4064
Parts removal
653
