Installation note: Pay attention to the original position of the string. The string on the pulley is wound
clockwise.
Sensor (staple
finisher
paddle) removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple
finisher
top cover. See “Staple
finisher
top cover removal” on page 588.

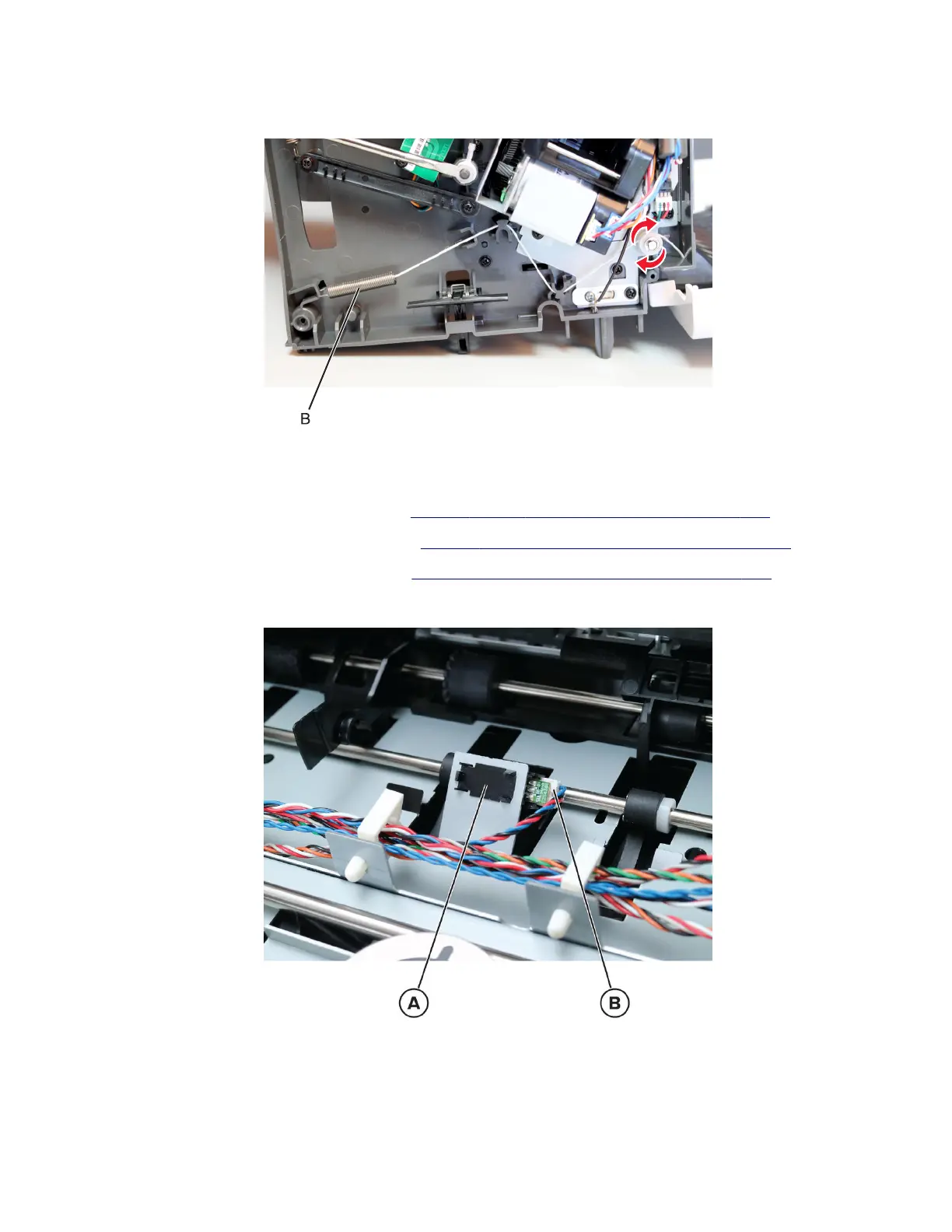

4 Remove the sensor retainer (A), and then disconnect the cable (B).
5 Remove the sensor.
4064
Parts removal
618
