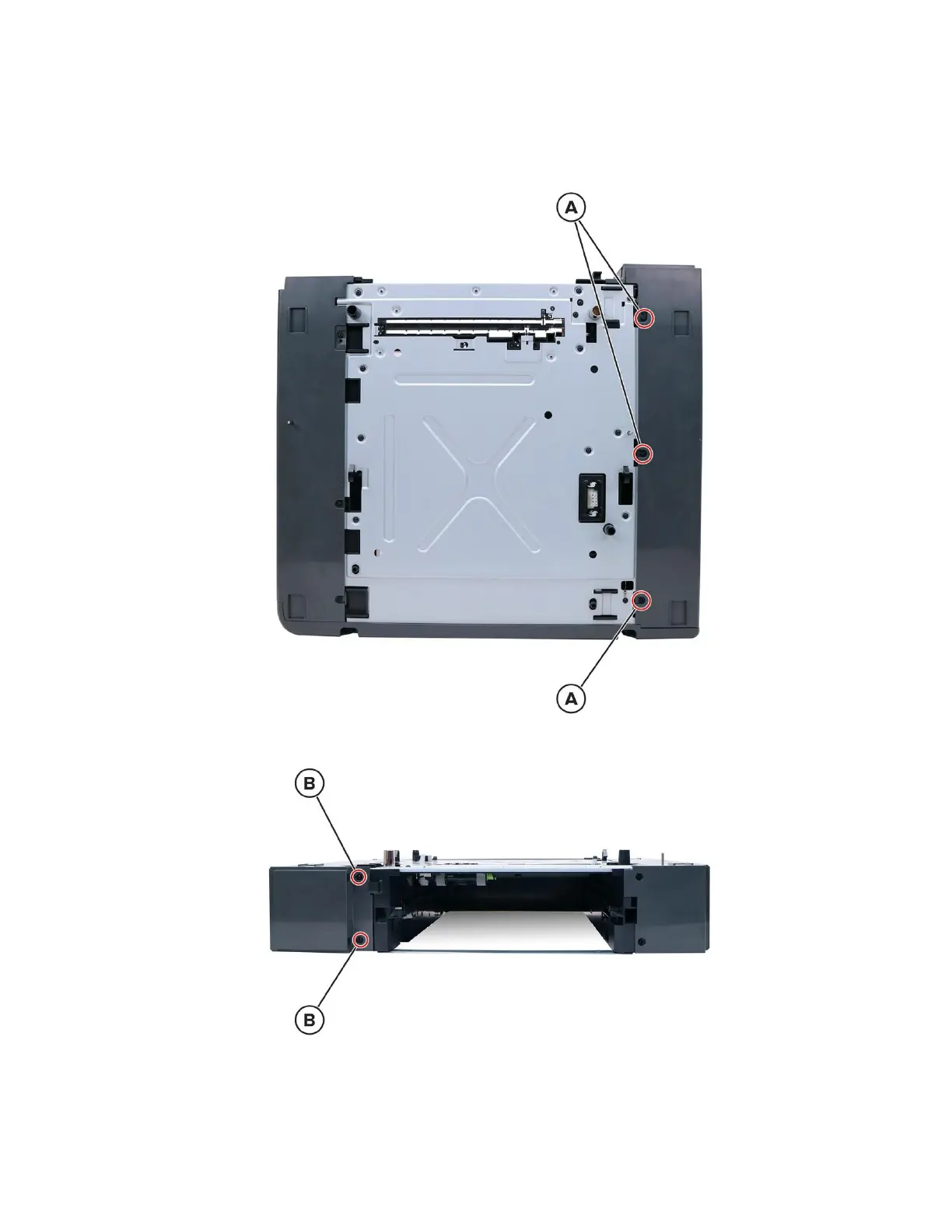

250‑ and 550-sheet tray left cover removal
1 Remove the tray insert.
2 From the top side, remove the three screws (A).
3 From the front side, remove the two screws (B).
4064
Parts removal
496
