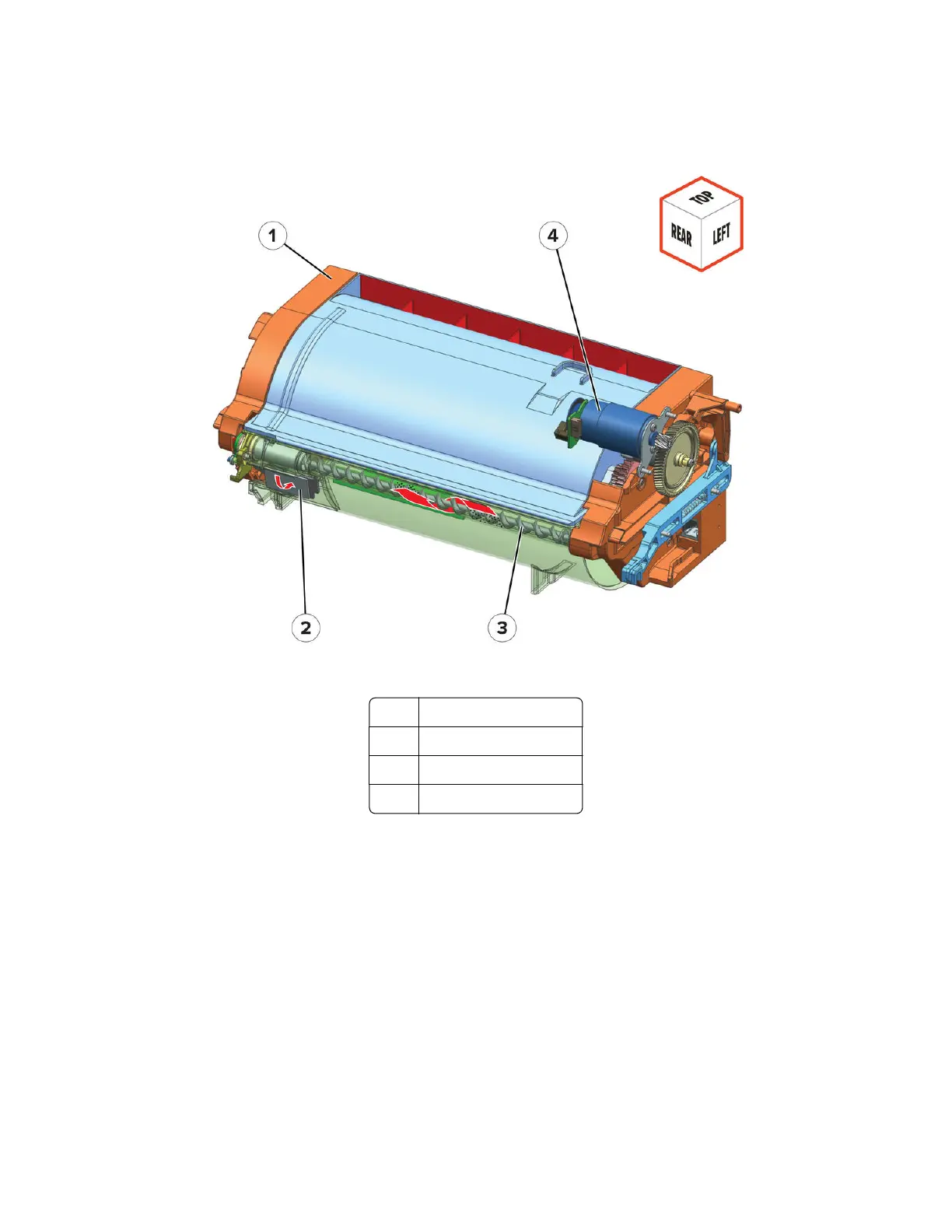

Fresh toner delivery drive
1 Toner cartridge
2 Shutter
3 Auger
4 Motor (toner cartridge)
The toner cartridge supplies fresh toner to the imaging unit. When the cartridge is installed, the shutter opens
to enable toner delivery. Inside the cartridge, paddles agitate the toner to ensure proper circulation. The auger
directs the toner particles toward the toner outlet. The paddles and auger are driven by the motor (toner
cartridge).
4064
Theory of operation
867
