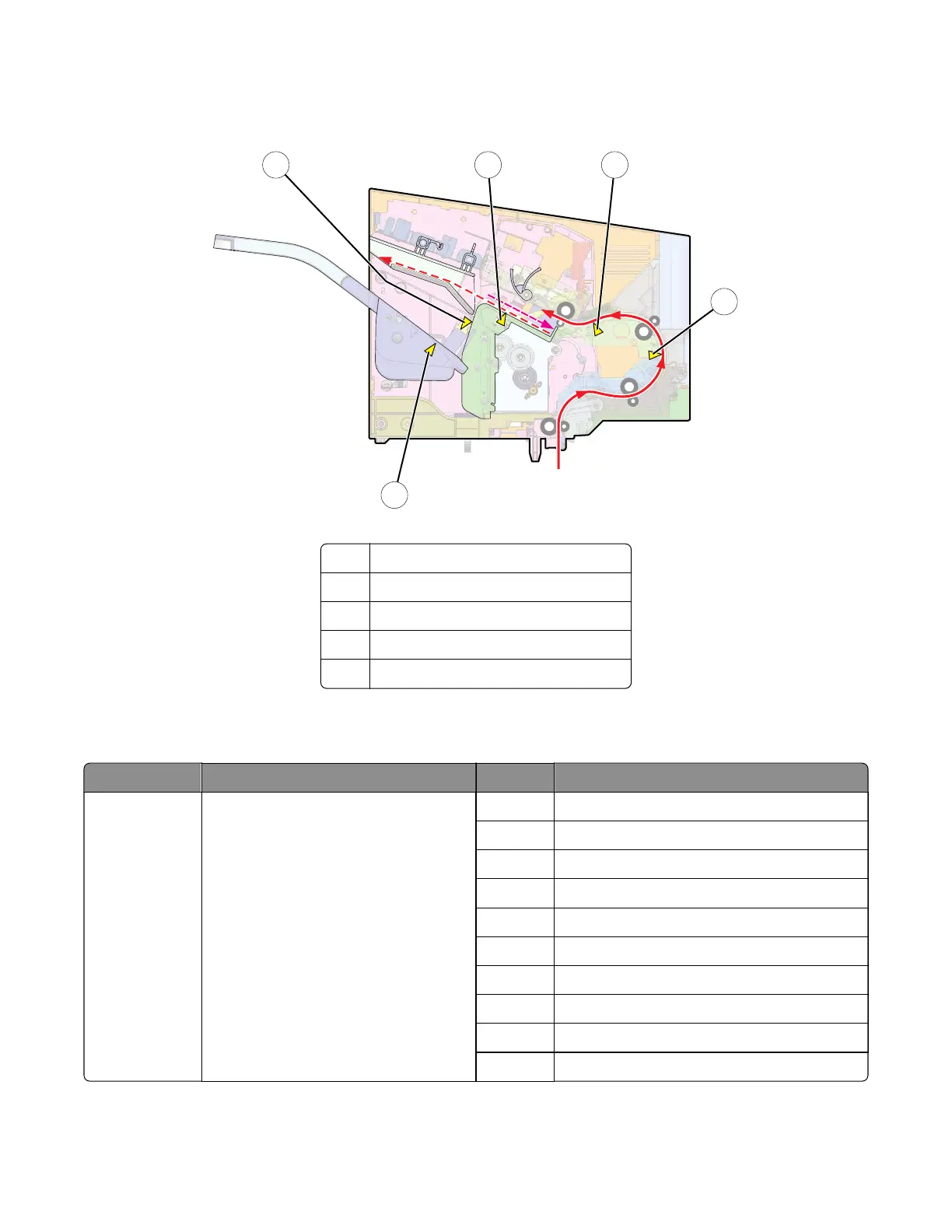

SHPF sensors
4
5
1
2
3
1 Sensor (SHPF transport 1)
2 Sensor (SHPF transport 2)
3 Sensor (SHPF tamper paper present)
4 Sensor (SHPF bin full)
5 Sensor (SHPF bin paper present)
Printer controller board connectors
Connector Connects to Pin no. Signal
J8 Imaging unit, CTLS, Sensor (toner
cartridge shutter)
1Toner Port Signal
2Smart Chip Data
3GND
4 +3.3V Supply Voltage
5Toner Port LED
6 Smart Chip Clock
7not used
8GND
9 25V Interlock to IU
10 25V Interlock - RETURN
4064
Component locations
749
