Sensor (staple finisher bin paper present) removal
1
Re
m
o
v
e
t
h
e
s
t
a
p
l
e
finisher
left cover
. See
“Stap
le
finisher
left cover removal” on page
584
.
2

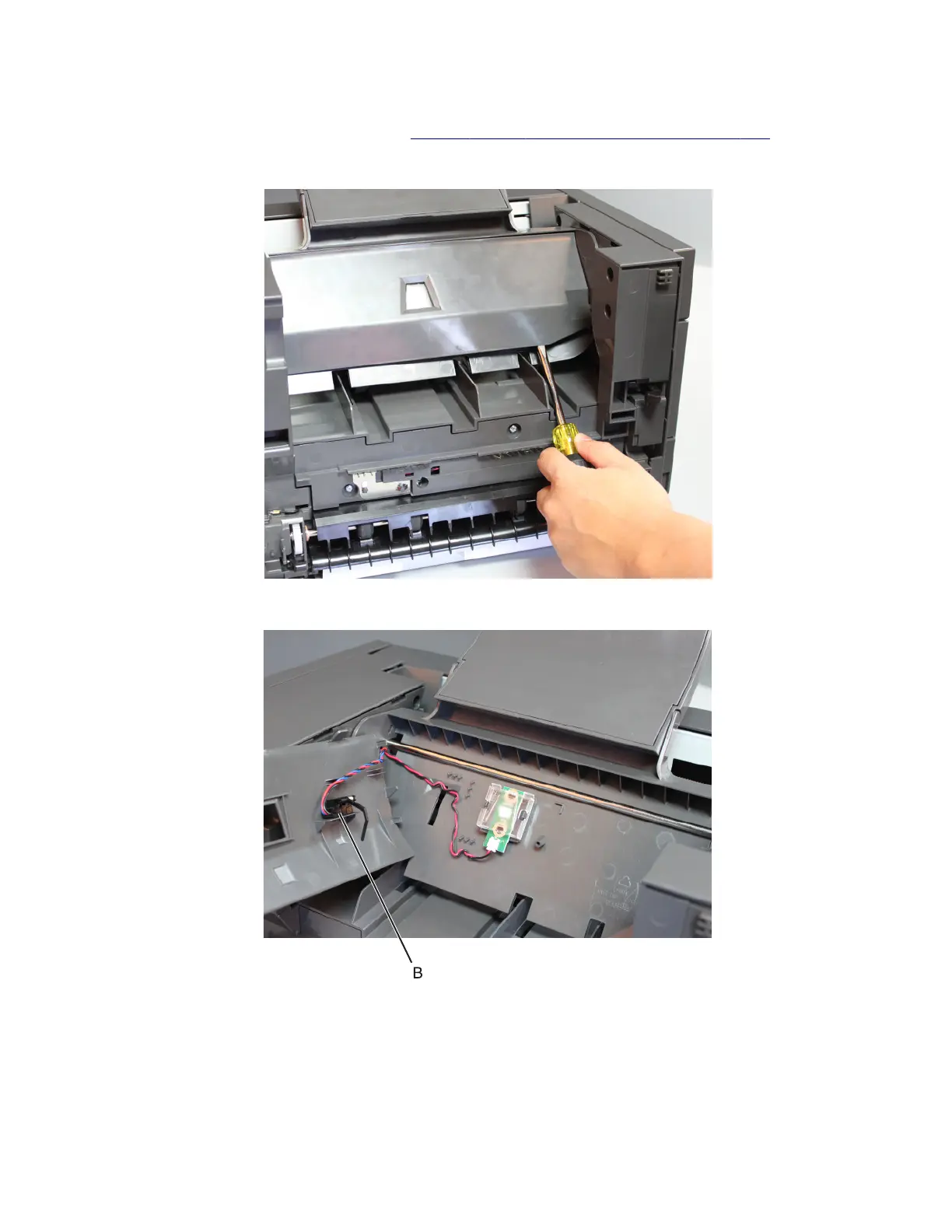

With a prying tool, open the L
ED cover
.
3
R
elease the sensor (B) from the cover
.
4
Disconnect the sensor cable from the contro
ller board, and then
remove the sensor
.
4064
Parts removal
603
602
604
