By default, diverters 1 to 3 are positioned so that the paper goes straight up. Depending on the destination bin,
diverters along the paper path may redirect the paper to the assigned bin. Solenoids control diverters 1 to 3.
On the other hand, the mailbox top diverter is positioned so that the paper exits by default to bin 4. Paper will
only go straight up if an optional bin on top of the mailbox is the destination bin of the print job.

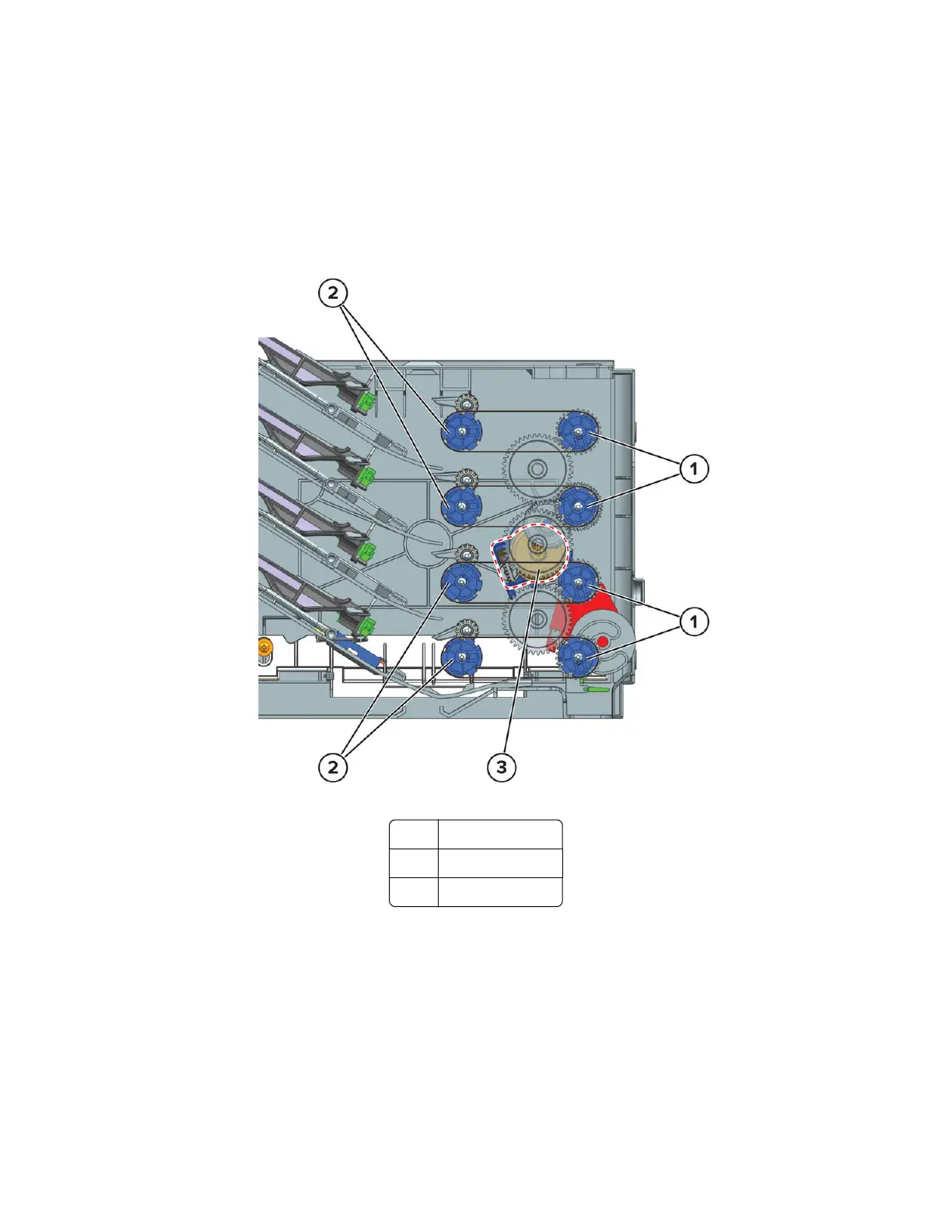

Mailbox transport and exit drive
1 Transport rollers
2 Exit rollers
3 Motor (transport)
Transport rollers and exit rollers along the paper path move the paper to the destination bin assigned for the
print job.
The motor (transport) drives both the transport and exit rollers.
4064
Theory of operation
899
