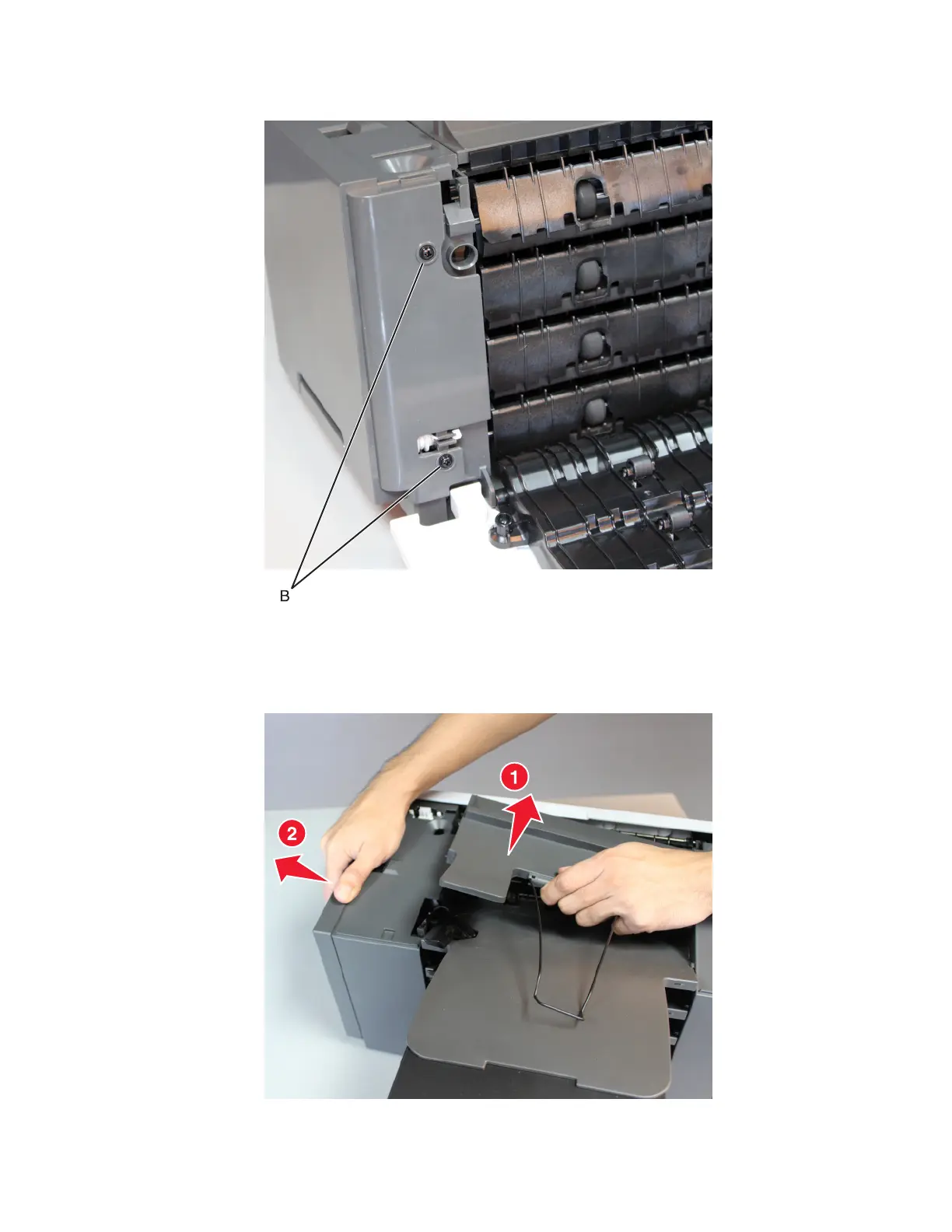

3 Remove the two screws (B) from the mailbox, and then remove the cover.
Mailbox top bin cover with bail removal
1 Slightly push the inner frame of the mailbox to the left to release the bin cover, and then lift the bin cover.
4064
Parts removal
652
