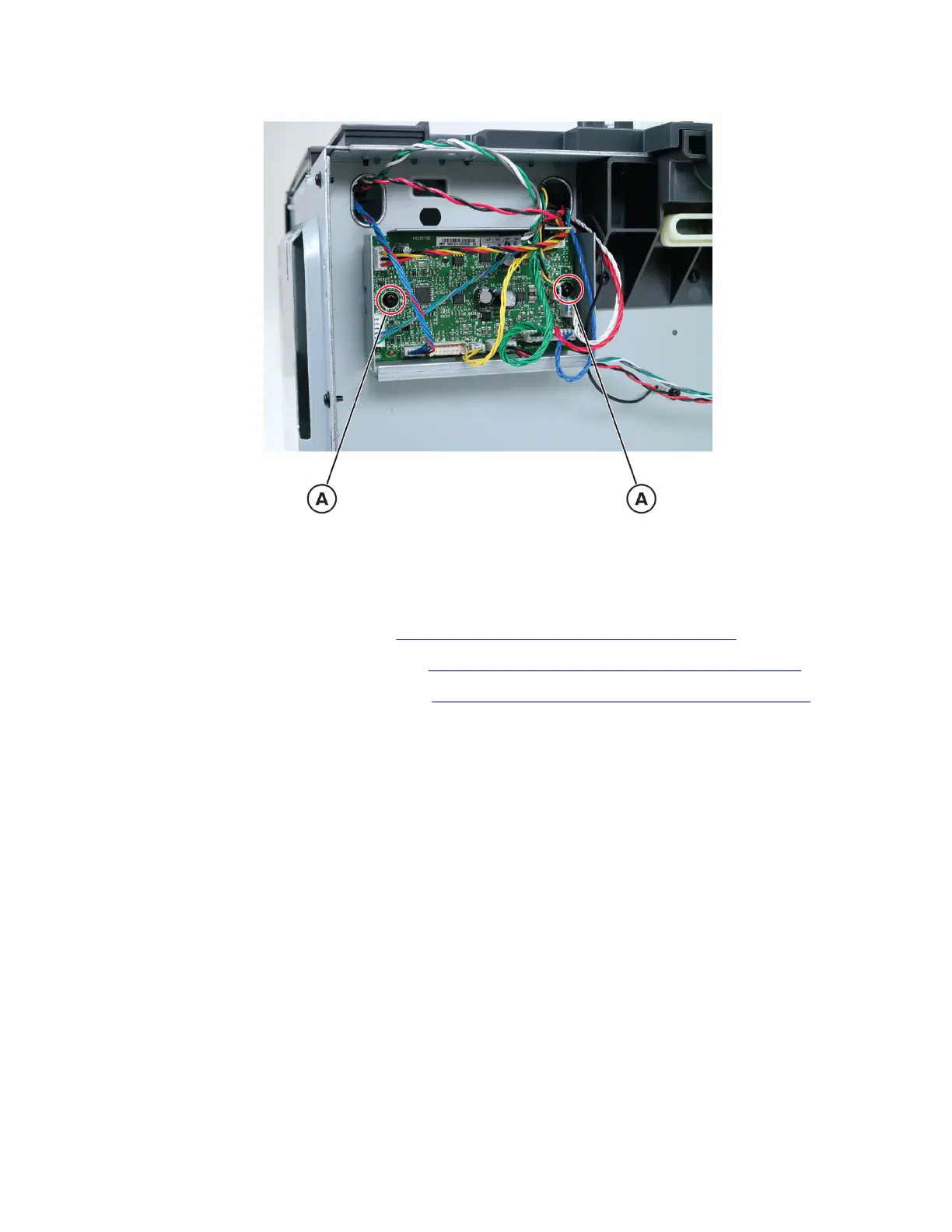

4 Disconnect all the board cables, and then remove the two screws (A).
5 Remove the board.
2100-sheet tray elevator drive removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray right cover. See “2100-sheet tray right cover removal” on page 476.
4064
Parts removal
484
