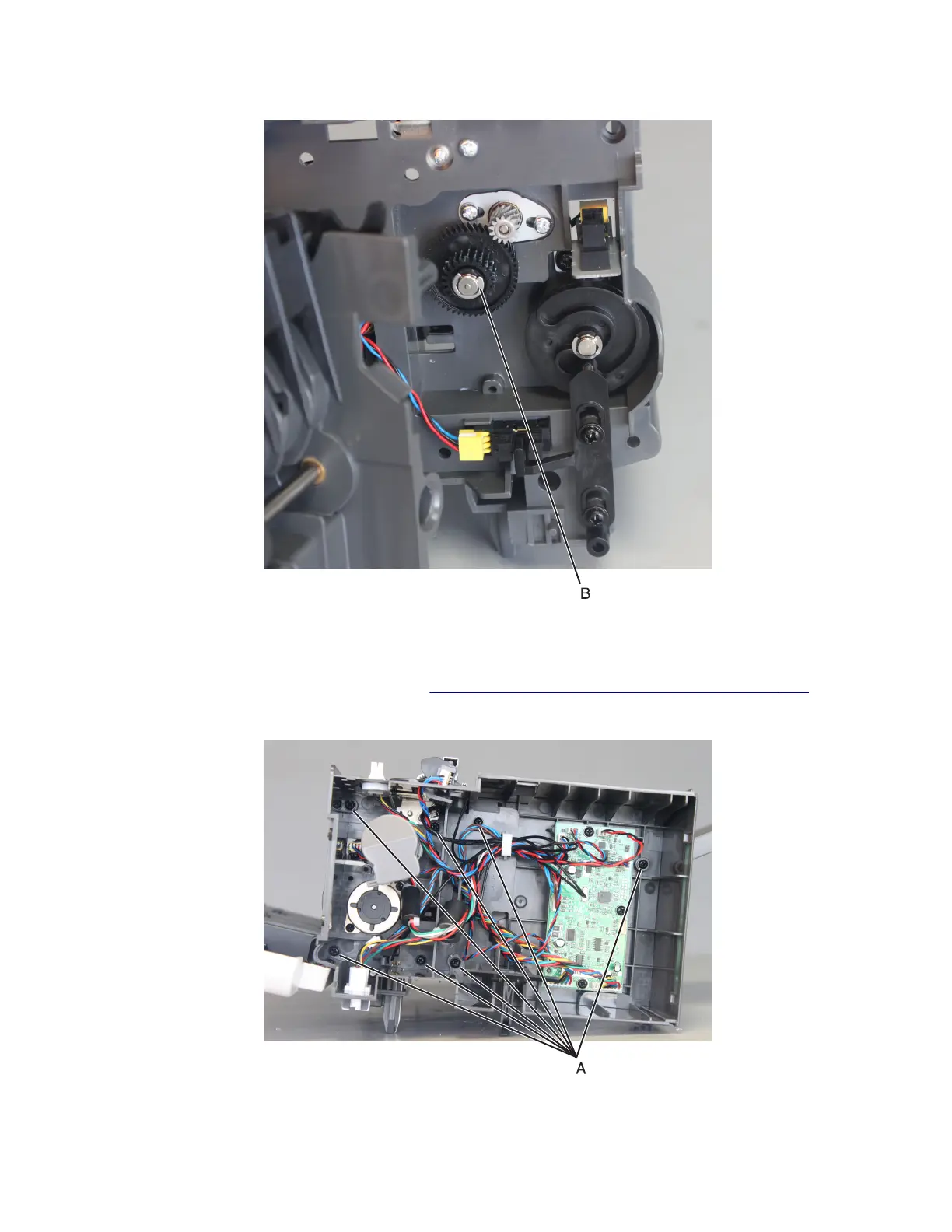

3 Pull away the frame to access the parts underneath. Remove the E-clip (B), and pull the gear o its shaft.
Motor (OE transport) removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A).
4064
Parts removal
532
