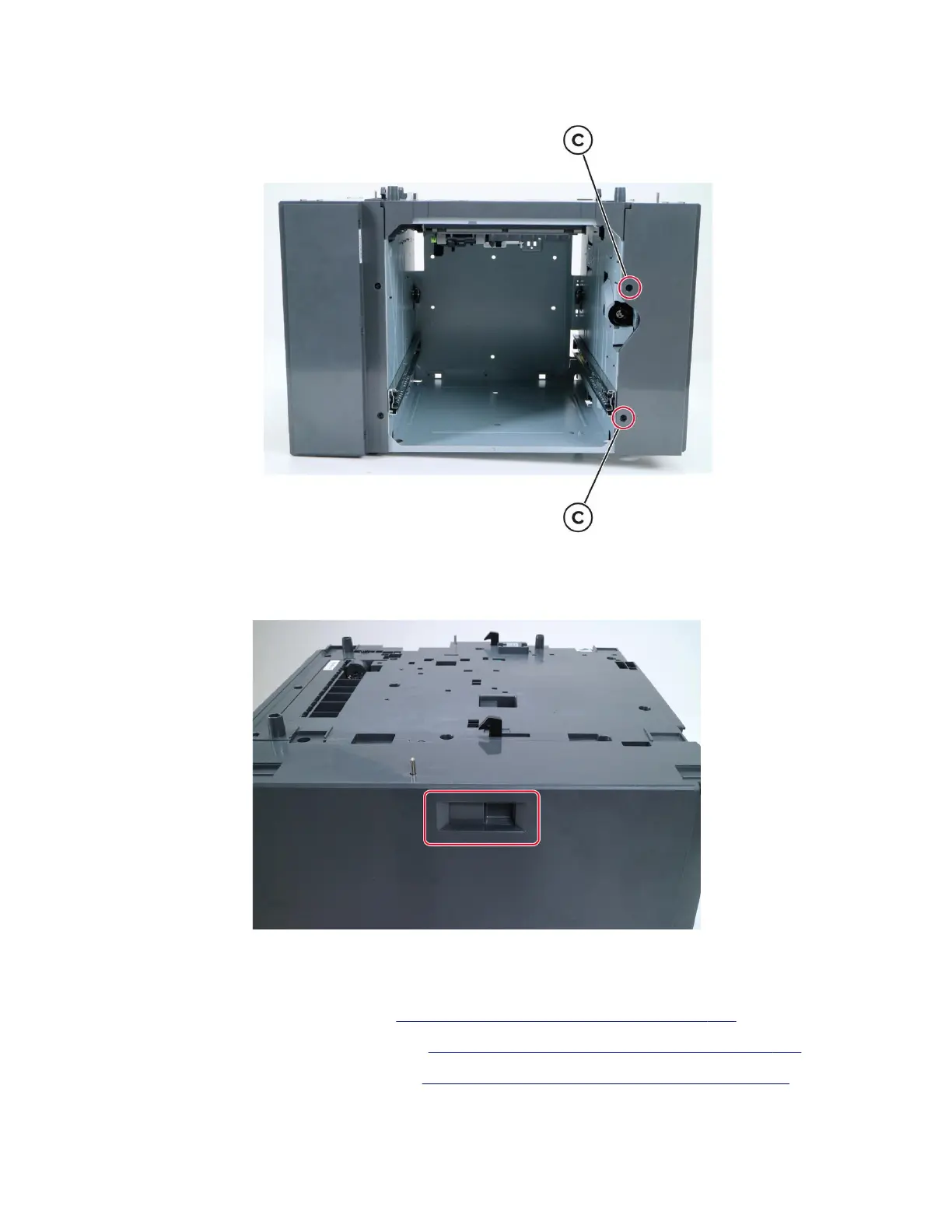

5 From the front side, remove the two screws (C).
6 Remove the cover.
Installation note: When installing the right cover, make sure that the latch is positioned as shown.
Motor (2100-sheet tray transport) removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray left cover. See “2100-sheet tray left cover removal” on page 473.
4064
Parts removal
478
