WinGD X62DF User Manual

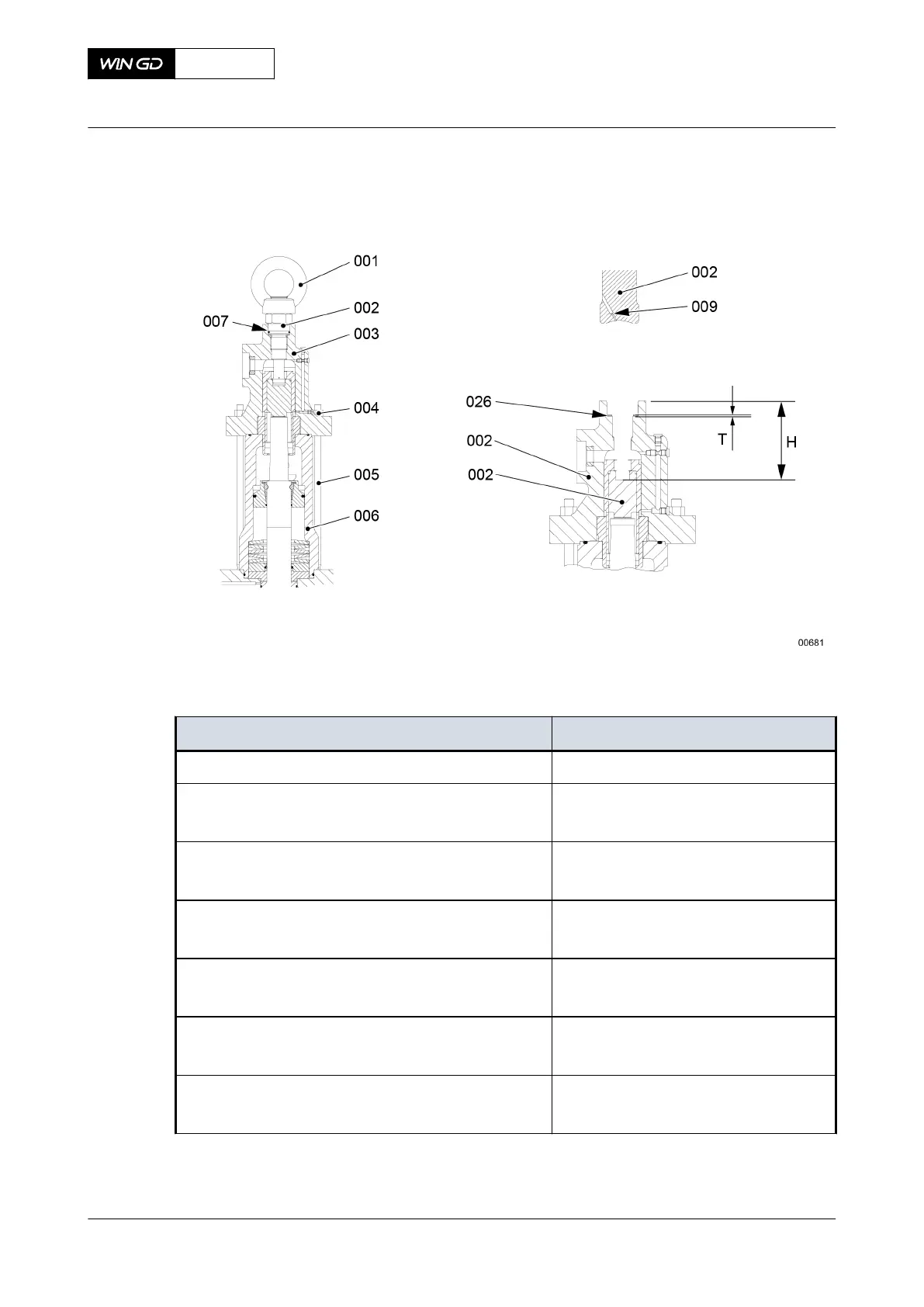

Fig 7-67 Damper setting (example)
Tab 7-3 Damper settings
Engine type Basic distance H
b
[mm]
X35, X35-B 80.9
X40, X40-B
X40DF
90.4
X52
X52DF
140.0
X62, X62-B
X62DF
143.7
X72, X72-B
X72DF
165.2
X82, X82-B
X82DF
175.0
X92, X92-B
X92DF
228.7
5 Install the valve stroke sensor.
5.1 Clean the parts that follow:
X72DF
AA00-2751-00AAA-710A-A
Maintenance Manual Exhaust valve - assemble
Winterthur Gas & Diesel Ltd.
- 318 - Issue 002 2020-10
