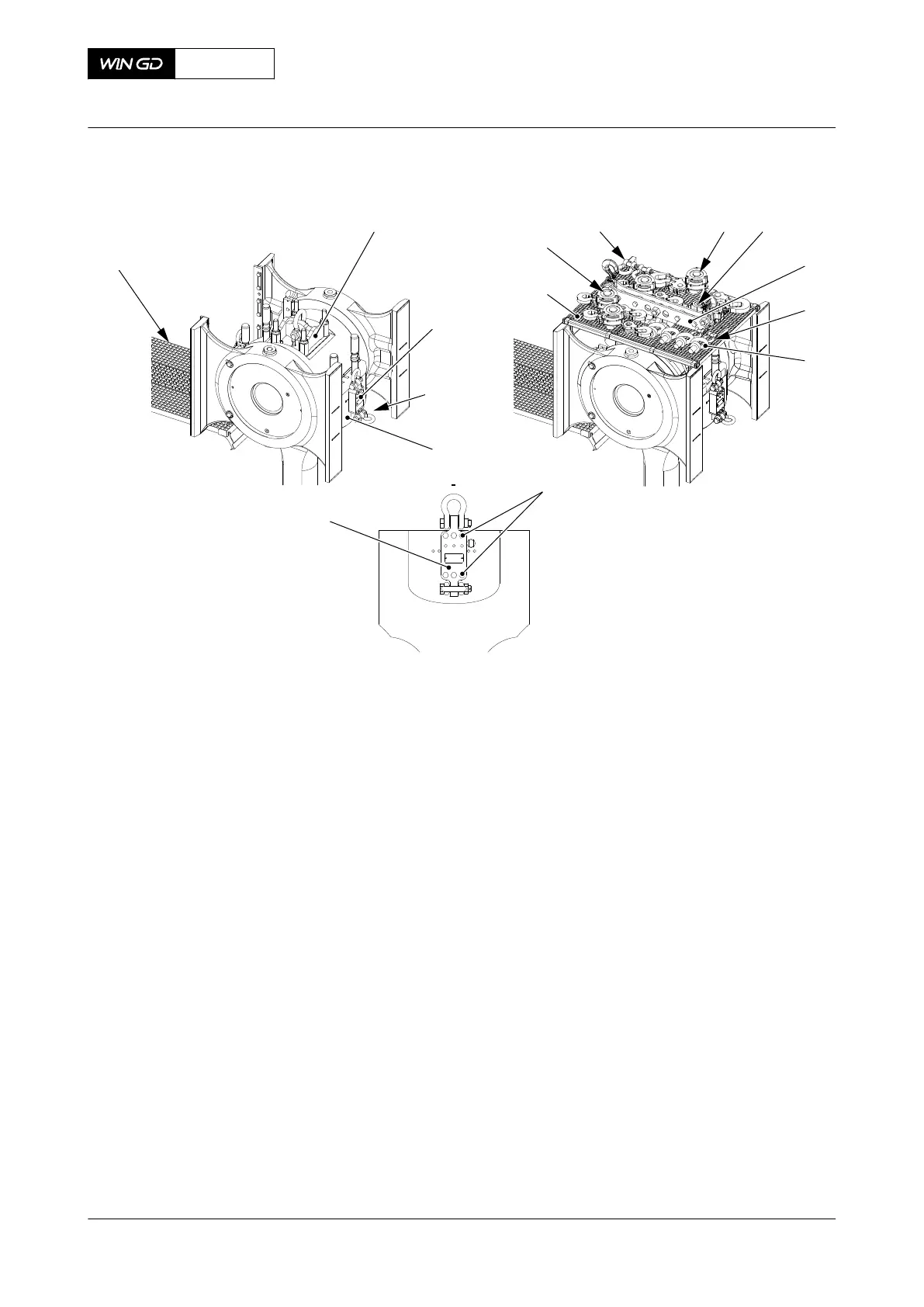

Fig 8-49 Tools - prepare
001
002
003
004
I
I
006 007
008
009
010
011
012
013
005
002
00744
12 Remove the toggle lever (001, Figure 8-50) from the crosshead pin. Let the toggle lever
hang in the column.
13 Attach one of the two shackles (006) to the column.
14 Attach on of the two lever chain hoist (005) to the shackle (006) and to the platform
(004).
15 Operate the chain hoist (005) to lift the platform (004).
16 Operate the turning gear to move the platform and tools up to a sufficient height.
17 Attach four of the eye bolts (008) to the cylinder block (007).
18 Attach two of the spur-geared chain block (012) to the eye bolts (008) and the shackles
on the bracket (010).
19 Operate the chain blocks (012) to lift the bracket (010) to the bottom of the cylinder
block (007).
20 Attach the bracket (010) to the eye bolts (008).
21 Remove the chain blocks (012) from the shackles on the bracket (010).
22 Attach the spur-geared chain block (011) to the bracket (010).
X72DF
AA00-3326-00AAA-520A-A
Maintenance Manual Crosshead - remove
Winterthur Gas & Diesel Ltd.
- 448 - Issue 002 2020-10
