CAUTION
Damage Hazard. Damage will occur to an incorrectly connected toggle lever. Make sure
that you connect the toggle lever correctly.

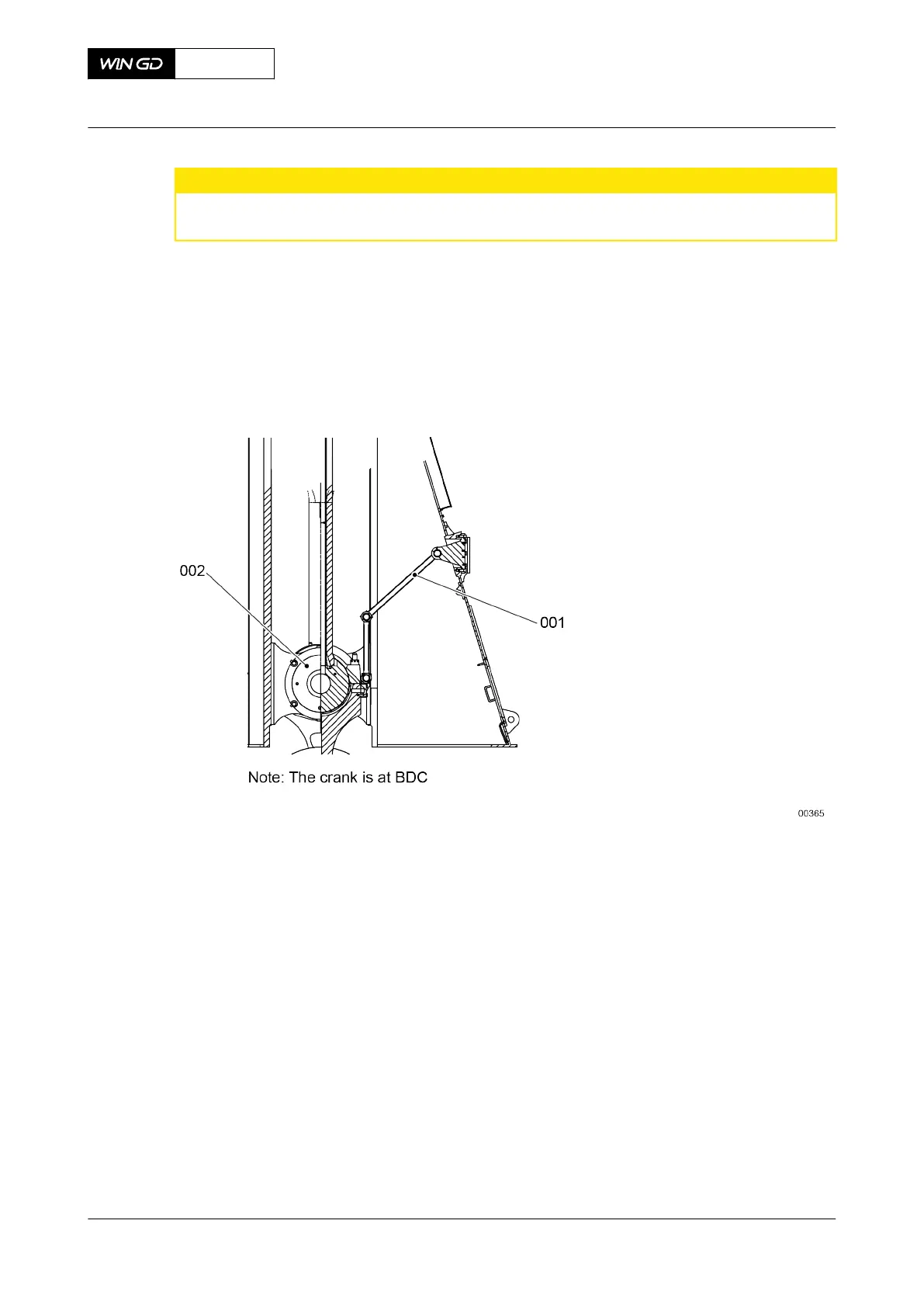

29 Connect the toggle lever (001, Figure 8-41) to the crosshead (002). Make sure that the
toggle lever is in the position shown.
Fig 8-45 Toggle lever - attach
30 Remove the platform, refer to section 8.1.3 Crankshaft - remove the work platform.
31 Do the a check of the clearances, refer to section 8.6.2 Crosshead - do a check of the
clearances.
32 Make sure that the piston rod foot (004, Figure 8-46) is clean and has no damage.
X72DF
AA00-3303-00AAA-720A-A
Maintenance Manual Connecting rod - install
Winterthur Gas & Diesel Ltd.
- 441 - Issue 002 2020-10
