1.16 Attach the (003) to the trolley (002).
1.17 Attach the spur-geared chain-block (004) to the shackle (003) and the slings.
1.18 Operate the chain block (007) to hold the weight of the electric motor (005).
1.19 Operate the chain blocks (007, 009, 004) to the move the electric motor (005) to
the position shown.
1.20 Make sure that the chain block (004) holds the weight of the auxiliary motor
(005).
1.21 Remove the chain blocks (007, 009).
1.22 Move the trolley (004) and auxiliary motor (005) to the driving end.
1.23 Attach the engine room crane to the slings.
1.24 Operate the engine room crane to hold the weight of the auxiliary motor (005).
1.25 Remove the chain block (004) from the auxiliary motor (005).
1.26 Operate the engine room crane to lower the auxiliary motor (005) on to an
applicable surface.

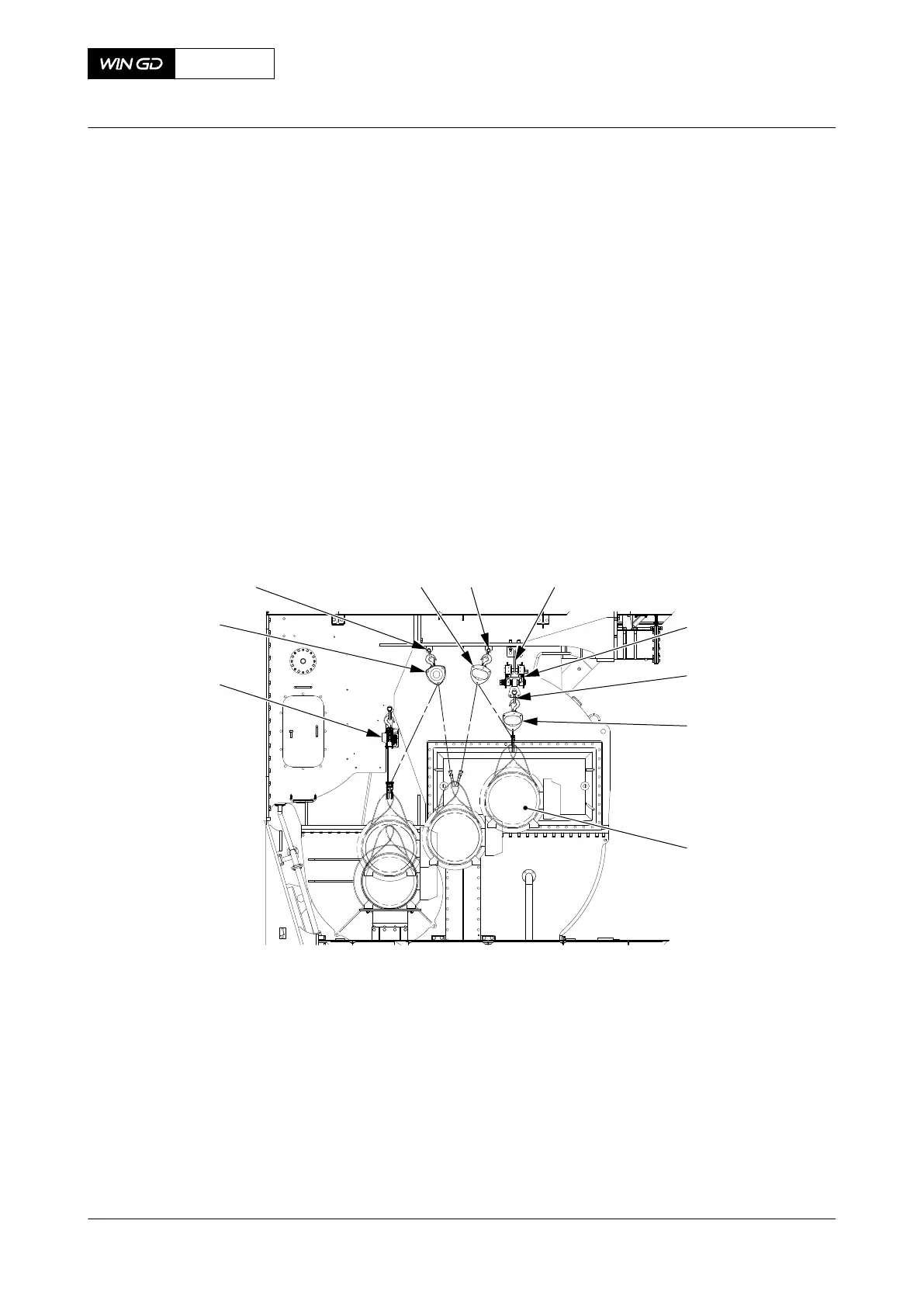

Fig 11-7 Electric motor (driving end) - remove
001
002
003
004
005
006
007
008 008009
00866
2 Free end
Do Step 2.1 to Step 2.25 for the electric motor at the free end:
2.1 Attach the shackle (WLL 8500 kg) (010, Figure 11-8) to the strut (011).
2.2 Attach the spur-geared chain block (009) to the shackle (010).
2.3 Attach the shackle (WLL 6500 kg) (003) to the strut (002).
2.4 Attach the spur-geared chain block (004) to the shackle (003).
2.5 Attach the chain blocks (004, 009) to the lifting tool (008).
2.6 Attach the two slings (007) to the electric motor and the lifting tool (008).
X72DF
AA00-6545-00AAA-520A-A
Maintenance Manual Auxiliary blower - remove
Winterthur Gas & Diesel Ltd.
- 636 - Issue 002 2020-10
