3.4.4 Cylinder liner

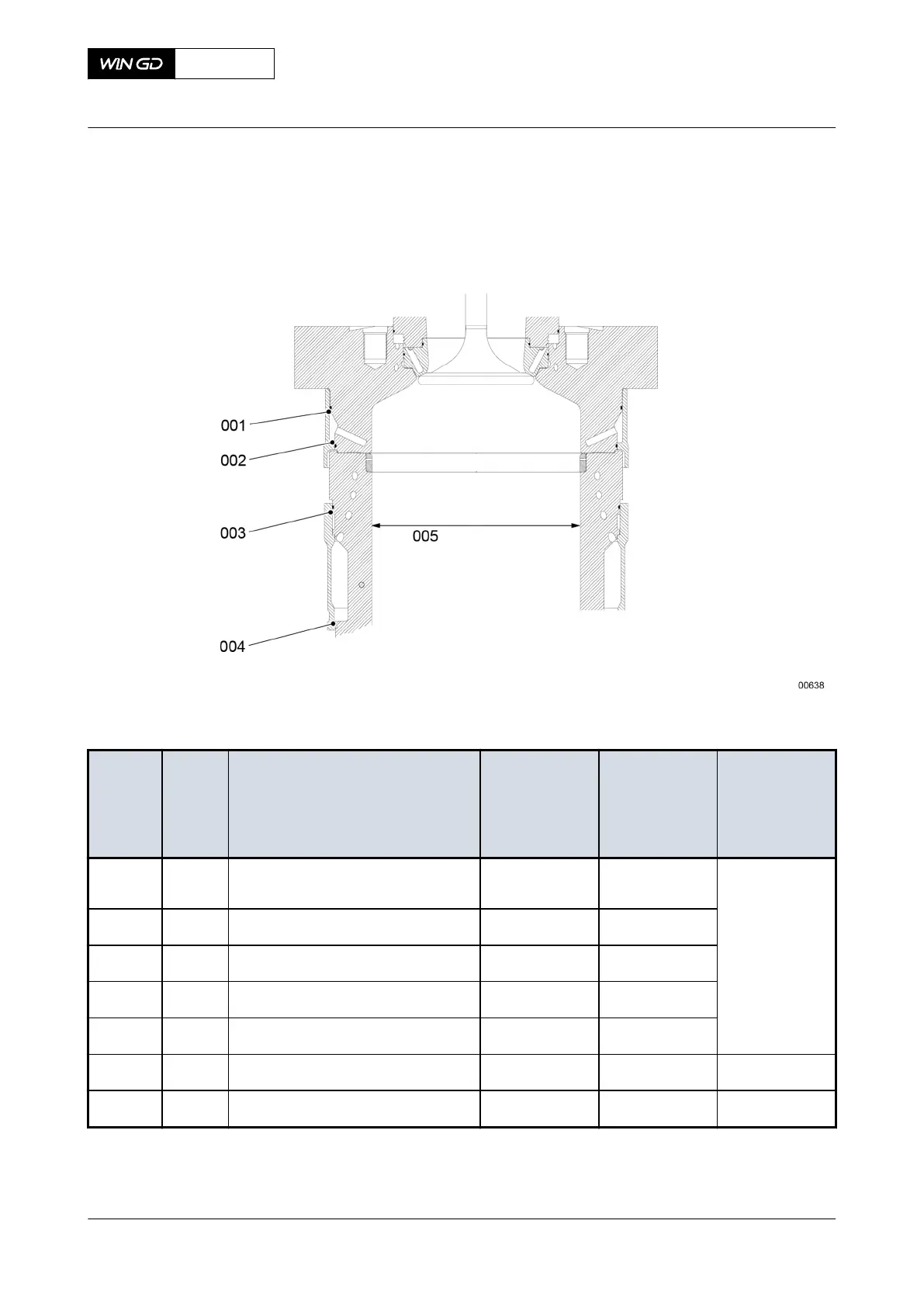

Fig 3-6 Cylinder liner
Tab 3-6 Cylinder liner
Location
code
Key Item Measured di-
rection
Nominal di-
mension (usu-
al, new) [mm]
Maximum
clearance di-
mension (be-
cause of wear)
[mm]
2130 Water guide jacket on cylinder cov-
er
001 Clearance - top part
Total
0.40 to 0.80
002 Clearance - top part Total
1.40 to 1.80
003 Clearance - bottom part Total 0.50 to 0.90
004 Clearance - bottom part Total 0.50 to 0.90
2124
Cylinder liner
*005 Cylinder liner bore
Radial
720 725
NOTE: The cylinder liner bore must be measured at the location shown.
X72DF
AA00-0000-00AAA-034C-A
Maintenance Manual Clearances
Winterthur Gas & Diesel Ltd.
- 68 - Issue 002 2020-10
