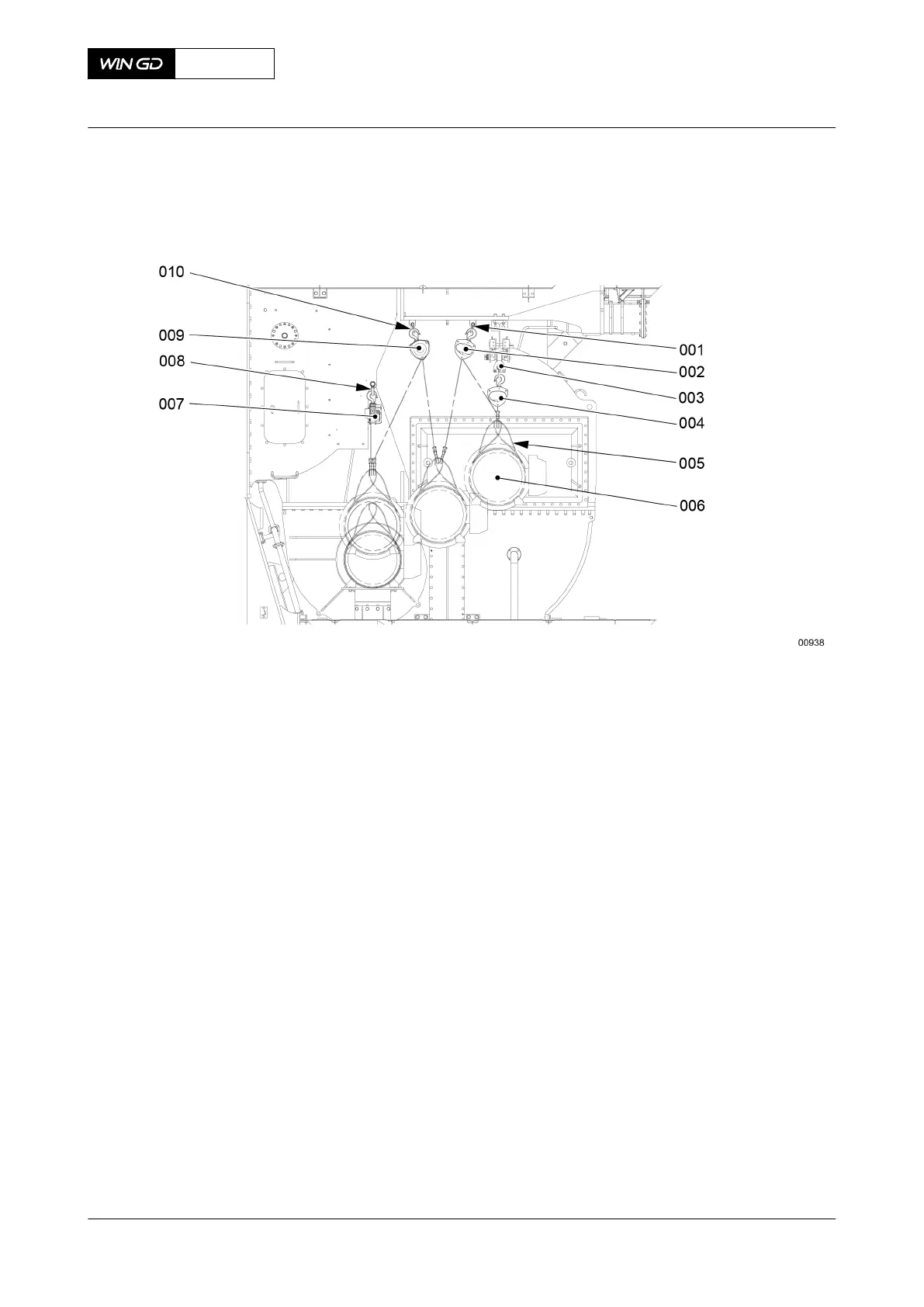

Fig 11-12 Auxiliary blower (driving end) move
2.17 Attach the shackle (002, Figure 11-13) to the strut (001).
2.18 Attach the spur-geared chain block (003) to the shackle (002) and the two slings
(007).
2.19 Operate the chain blocks (002, 010) to move the electric motor (006) into the
casing.
2.20 Attach the electric motor (006) to the flange (004) with the bolts.
2.21 Attach the electric motor (006) to the support (005) with the bolts.
2.22 Connect the electrical connection to the electric motor (006).
X72DF
AA00-6545-00AAA-720A-A
Maintenance Manual Auxiliary blower - install
Winterthur Gas & Diesel Ltd.
- 644 - Issue 002 2020-10
