2.7 Operate the chain blocks (004, 009) to hold the weight of the electric motor.
2.8 Remove the four nuts, bolts and eight washers (006) from the support.
2.9 Remove the screws from the flange (006).
2.10 Operate the chain blocks (004, 009) to remove the electric motor from the casing
as shown.
2.11 Operate the chain block (004) to release the tension until the auxiliary motor is
below the chain block (009).
2.12 Remove the chain block (004).
2.13 Attach the shackle (001) to the lug in the gallery as shown.

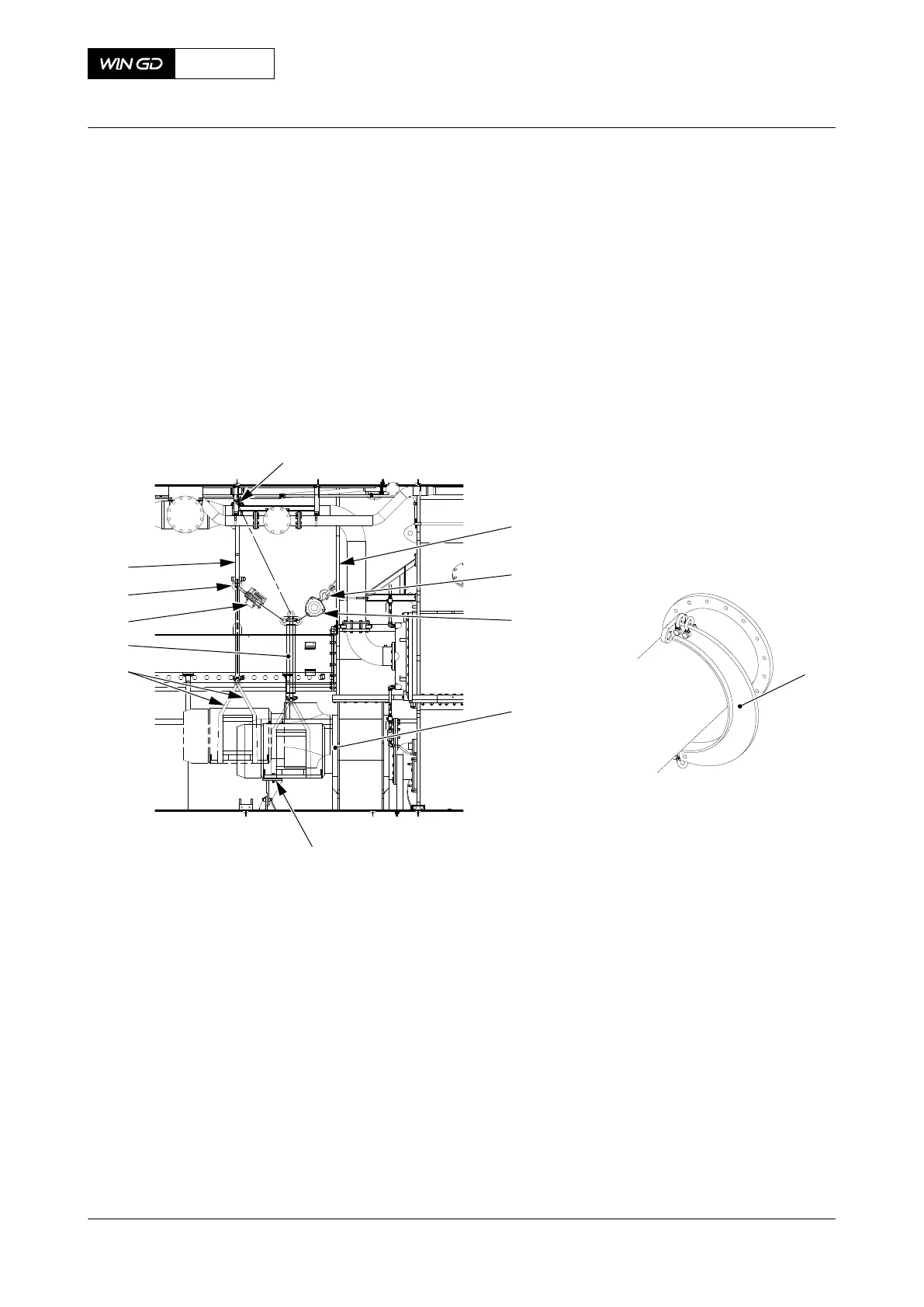

Fig 11-8 Electric motor (free end) - move
001
002
003
004
005
006
007
008
009
010
011
008
00867
2.14 Attach the spur-geared chain block (007, Figure 11-9) to the shackle (008) and
the shackle on the lifting tool (002).
2.15 Attach the shackle (010) to the lug in the gallery.
2.16 Attach the spur-geared chain block (009) to the shackle (010) and the lifting tool
(002).
2.17 Operate the chain blocks (007, 009) until the electric motor (004) is below the
chain block (007).
2.18 Remove the chain block (005).
2.19 Attach the shackle (001) to the gallery.
2.20 Attach the chain block (011) to the shackle (001).
2.21 Operate the chain blocks (009, 011) to move the electric motor (004).
2.22 Attach the engine room crane to the shackle on the lifting tool (002).
2.23 Operate the engine room crane to hold the weight of the electric motor (004).
2.24 Remove the chain blocks (009, 011) from the lifting tool (002).
