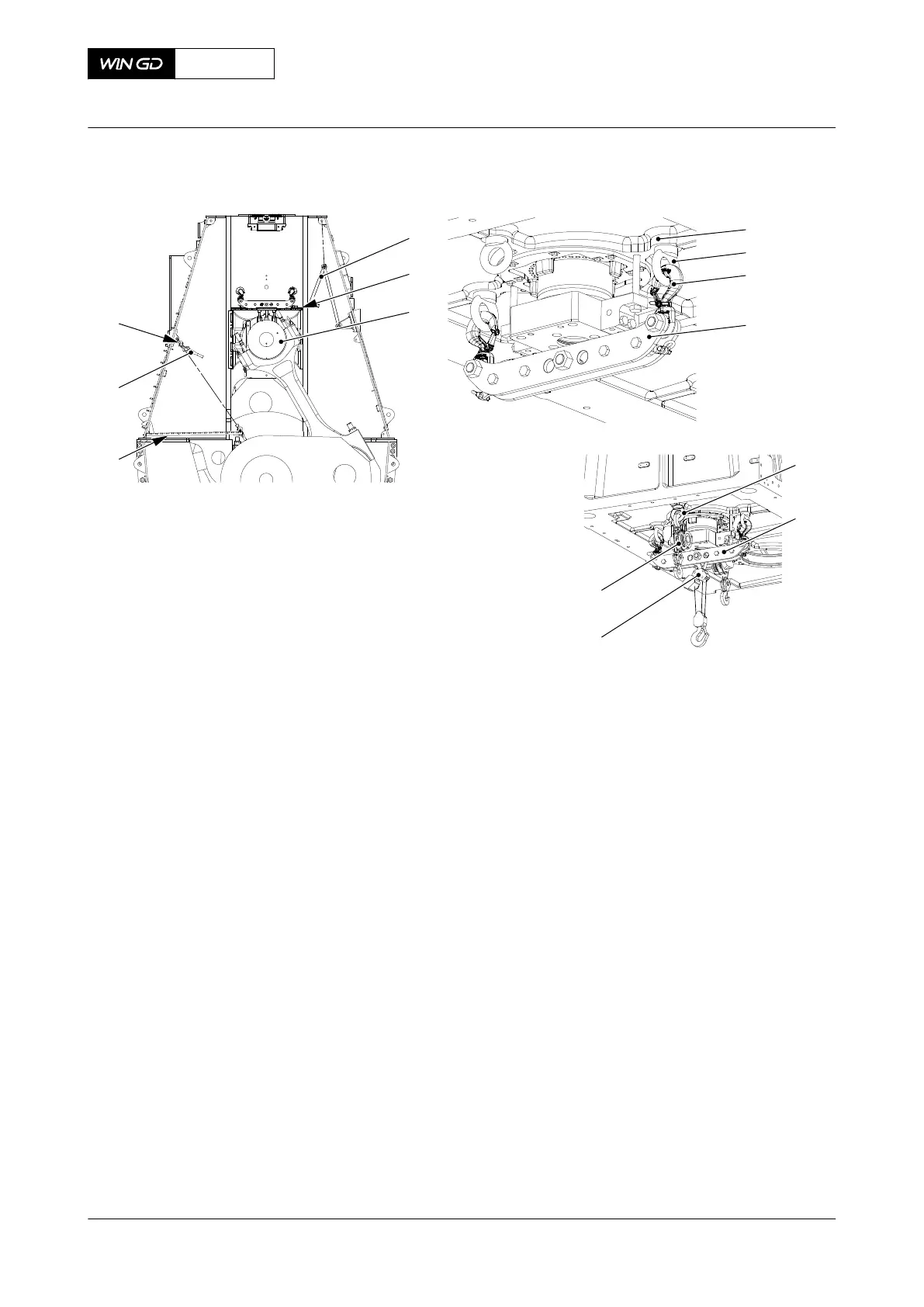

Fig 8-50 Bracket - attach
001
002
003
004
005
006
007
008
009
010
008
010
011
012
00745
23 Attach the shackle (012, Figure 8-51) to the column on the fuel side.
24 Attach the chain block (011) to the shackle (012).
25 Operate the turning gear to move the crank of the applicable cylinder to BDC.
26 Remove the platform from the crosshead pin.
27 Attach the two eye bolts (001) to the guide shoes (002).
28 Attach the shackles (004) to the column as shown.
29 Attach the lever chain hoists (005, 010) to the shackles (004).
30 Attach the lever chain hoists (005, 010) to the two top shackles (008) on the lifting tools
(009) on the connecting rod.
31 Attach the chain block (003) to the lifting tool (006).
32 Operate the lever chain hoists (005, 010) to put a light tension on their chains. Make
sure that the primary load stays on the chain block (003).
X72DF
AA00-3326-00AAA-520A-A
Maintenance Manual Crosshead - remove
Winterthur Gas & Diesel Ltd.
- 449 - Issue 002 2020-10
