PROCEDURE
1 Prepare the axial vibration damper for removal.
1.1 Read the data in 3.1 Lifting tools.
1.2 Remove the oil pipes (002 and 003, Figure 8-7).
1.3 Disconnect the two cables (001).
1.4 Remove the housing (004).

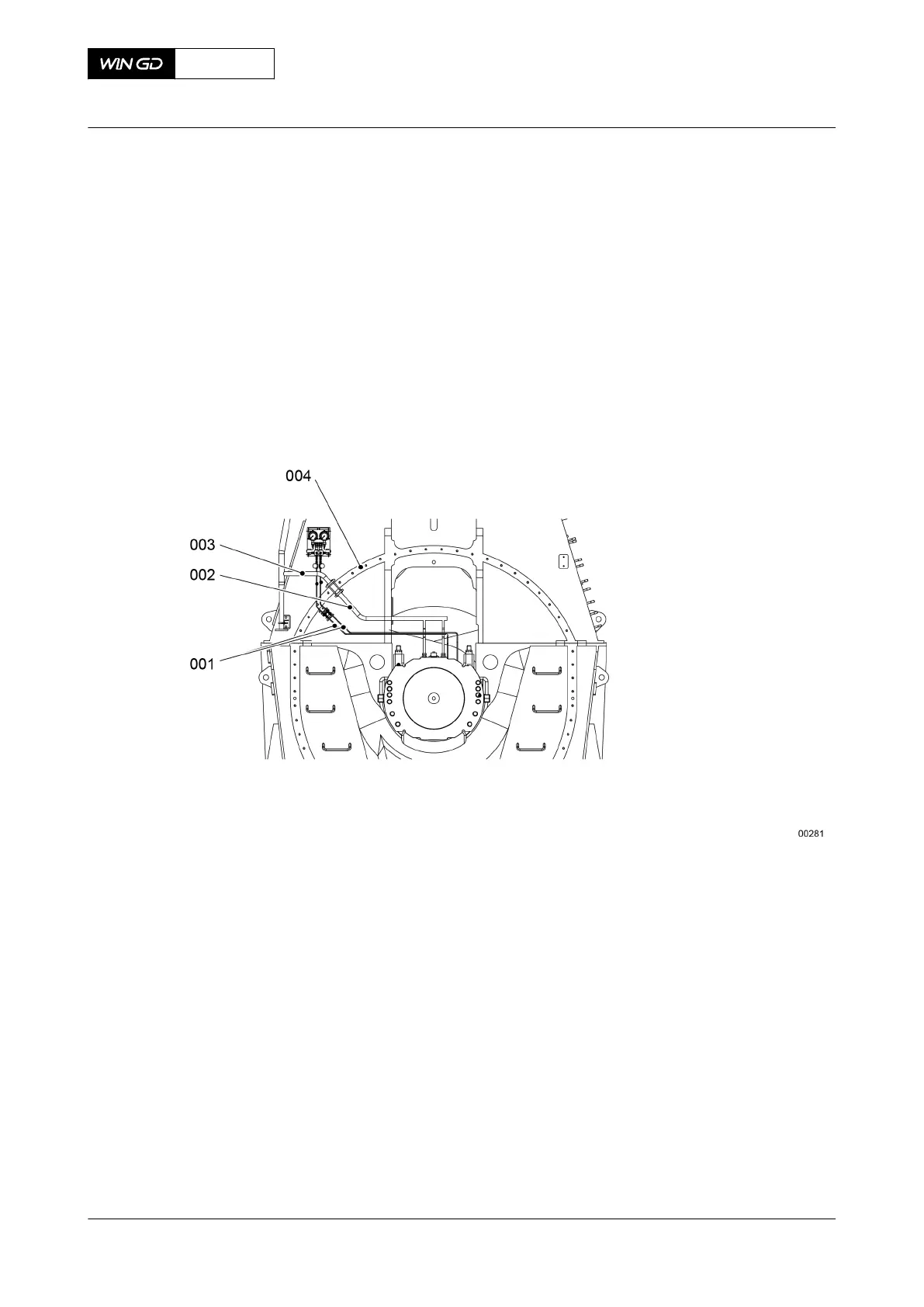

Fig 8-7 Axial vibration damper - housing and pipes
2 Remove the four bolts (001, Figure 8-8) and the six bolts (002) from the top cylinder
half.
3 Examine the 2-part gaskets (003, 004) for damage and contamination. If necessary,
remove and discard the 2-part gaskets.
X72DF
AA00-3140-00AAA-530A-A
Maintenance Manual Axial vibration damper - disassemble
Winterthur Gas & Diesel Ltd.
- 363 - Issue 002 2020-10
