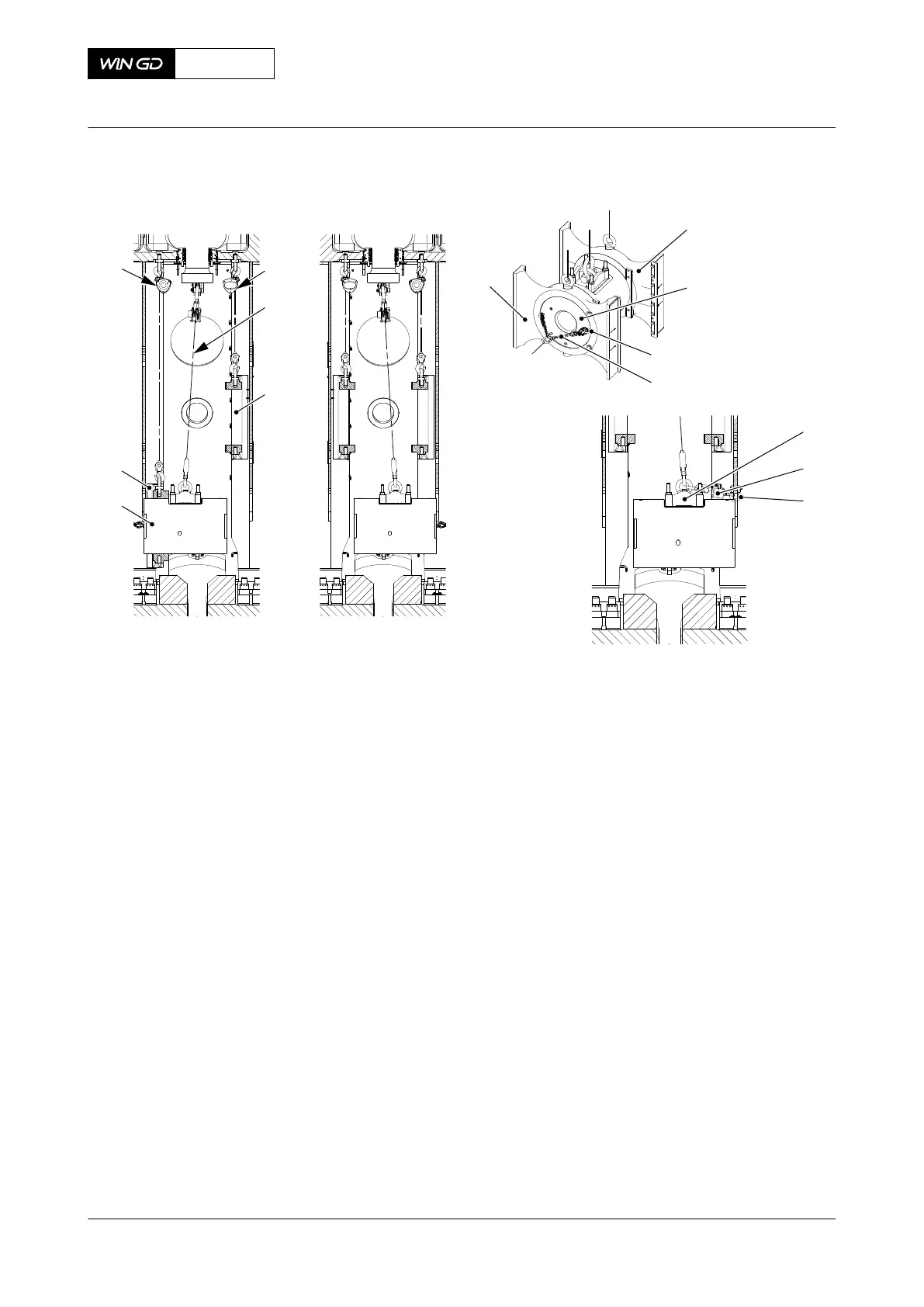

Fig 8-61 Guide shoes - install
001
002
004
005
009
010
011
003
007
008
005
004
00755
003
006
28 Attach the two holding plates (001, Figure 8-62) to the guide shoe (002) with the tab
washers and bolts.
29 Make sure that there is no clearance between the holding plates (001) and crosshead
pin (003).
30 Operate the chain blocks (004, 005) to lift the crosshead approximately 300 mm above
the center of the pin hole.
31 Use an applicable tool and sufficient personnel to attach the two supports (006) to the
guide way.
32 Torque the four bolts (016) to the correct value, refer to section 16.1 Tightening
instructions.
33 Tighten the two special screws (017).
34 Lower the crosshead pin (003) on to the supports (006)
35 Attach the lever chain hoist (010) to the shackle (011) on the column and to the shackle
on the lifting tool (007) on the connecting rod (008).
36 Operate the lever chain hoist (010) to move the connecting rod (008) a small distance.
37 Remove the wooden block (009).
38 Attach the other lever chain hoist to the other shackle on the lifting tool (014).
39 Operate the lever chain hoists (011) to move the connecting rod (008) to the vertical
position.
40 Operate the chain blocks (004, 005) to lift the crosshead pin (003) a small distance.
41 Loosen the two special screws (017).
42 Use an applicable tool and sufficient personnel to remove the two supports (006).
43 Operate the chain blocks (004, 005) to lower the crosshead pin (003) on to the
connecting rod (008).
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
Winterthur Gas & Diesel Ltd.
- 466 - Issue 002 2020-10
