PROCEDURE
1 Driving end
Do Step 1.1 to Step 1.26 for the electric motor at the driving end:
1.1 Disconnect the electrical connection from the electric motor.
1.2 Attach the shackle (WLL 8500 kg) (009, Figure 11-6) to the strut (008).
1.3 Attach the spur-geared chain-block (010) to the shackle (009).
1.4 Attach the shackle (WLL 6500 kg) (002) to the strut (001).
1.5 Attach the spur-geared chain-block (003) to the shackle (002).
1.6 Attach the two slings (WLL 2000 kg) (007) to the electric motor (006) and the
chain blocks (003, 010).
1.7 Operate the chain blocks (003, 010) to hold the weight of the electric motor
(006).
1.8 Remove the four nuts, bolts and eight washers (005) from the support.
1.9 Remove the bolts from the flange (004).
1.10 Operate the chain blocks (003, 010) to remove the electric motor (006) from the
casing as shown.
1.11 Remove the chain block (003).

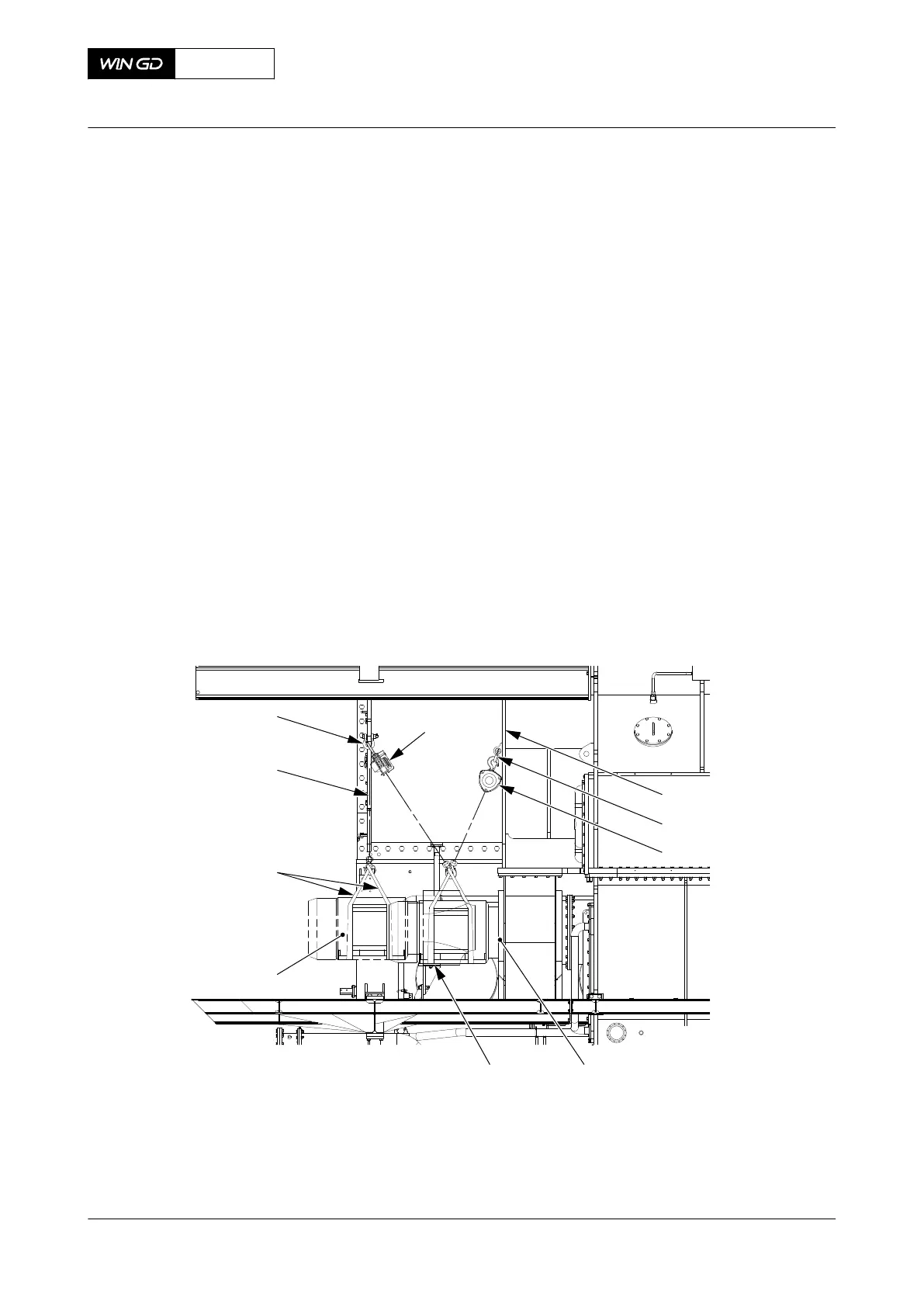

Fig 11-6 Electric motor (driving end) - move
001
002
003
004005
006
007
008
009
010
00865
1.12 Attach the two shackle (WLL 3250 kg) (008, Figure 11-7) to the lugs in the
gallery.
1.13 Attach the spur-geared chain-block (007) to the shackle (008) and the slings.
1.14 Attach the spur-geared chain-block (009) to the shackle (008).
1.15 Attach the shackle (WLL 8500 kg) (002) to the beam (001).
X72DF
AA00-6545-00AAA-520A-A
Maintenance Manual Auxiliary blower - remove
Winterthur Gas & Diesel Ltd.
- 635 - Issue 002 2020-10
