PROCEDURE
1 Make sure that the new bearing (002, Figure 12-21) is clean, dry and in good condition.

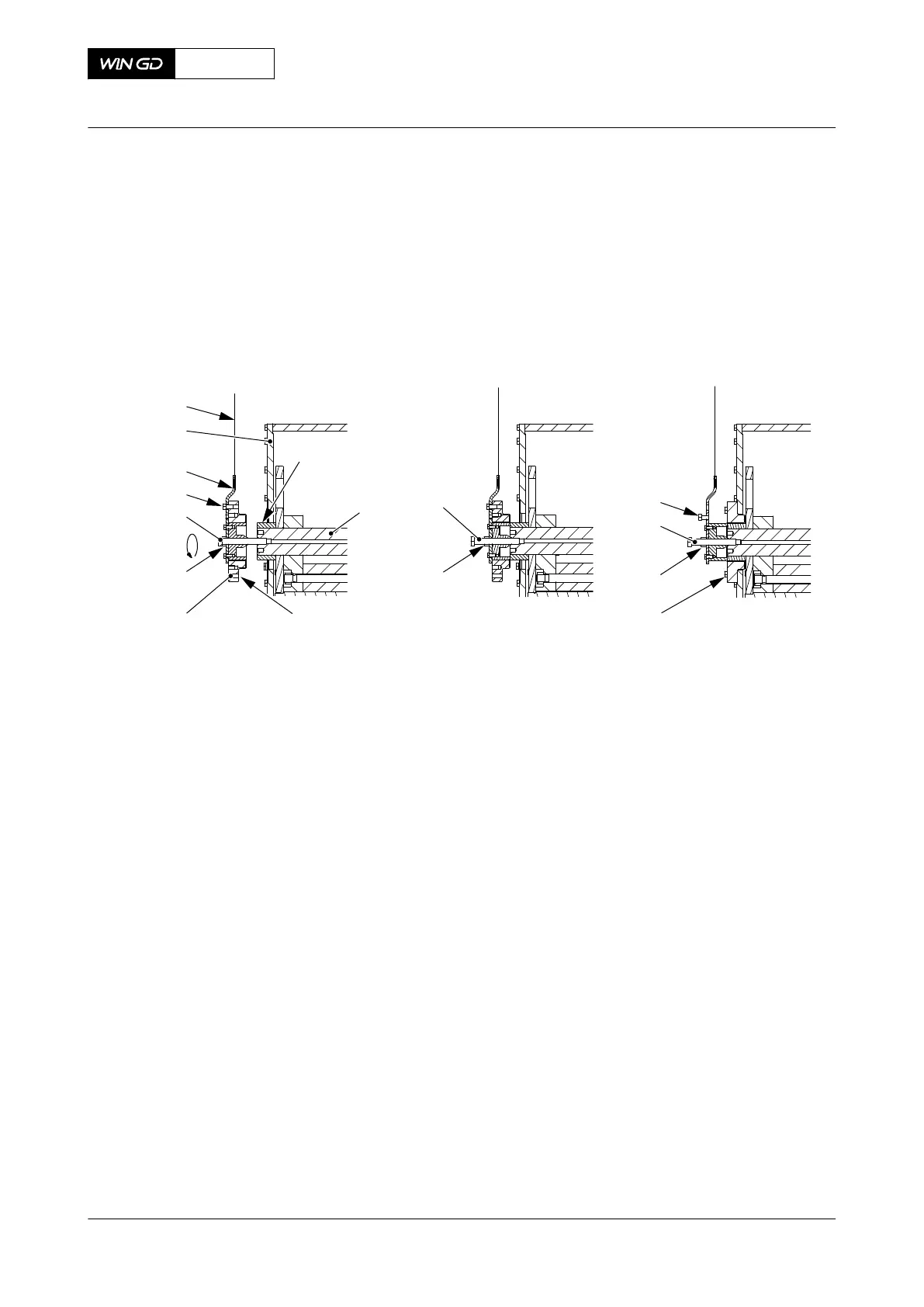

Fig 12-21 Outer bearing - install
Molykote D
004
00583
008
OUTER
SIDE
006
005
003
Loctite
001
007
004
003
002
004
003
005
009
2 Apply Molykote D to the bearing surface.
3 Attach the bearing (002) to the lifting tool (006).
4 Apply Loctite No. 640 to the applicable surface of the bearing (002).
5 Tighten the screw (005).
6 Attach the lifting tool (006) to the engine room crane (008).
7 Operate the engine room crane (008) to move the bearing (002) into position in front of
the column (007).
8 Apply Molykote D to the bearing surface of the pin (001).
9 Attach the screw (004) together with the nut (003) through the bearing (002) to the
pin (001).
10 Find the taper pin holes on the column (007).
11 Turn the bearing (002) until the taper pin holes are at 90° to the holes in the column
(007).
12 Tighten the nut (003). Make sure that the bearing (002) is in the correct position in the
column (007).
13 Remove the screw (005).
14 Remove the lifting tool (006).
15 Attach the bearing (002) to the column (007) with four of the eight bolts (009). Do not
tighten the bolts.
