PROCEDURE
1 Make sure that the platform is installed.
2 Operate carefully the lever chain hoists (002 and 007, Figure 8-25) to move the
connecting rod (003) to the fuel side.
3 Remove the lever chain hoist (007) from the lifting tool on the connecting block.
4 Install the brackets (008) on the bearing shell (004). Make sure that the lugs face in.
5 Attach the chain (010) to the brackets (008).
6 Attach the lever chain hoist (007) to the chain (010).
7 Attach the deviation pipe (001) to the column.
8 Attach the sling (006) to the gallery.
9 Attach the spur-geared chain block (005) to the sling (006) and to the chain (010).
10 Remove the screws (009).
11 Operate the lever chain hoist (007) and the chain block (005) to remove the bearing
shell (004) from the connecting rod (003).
12 Operate the lever chain hoist (007) and the chain block (005) to move the bearing shell
(004) through the column door.
13 Lower the bearing shell (004) on to an applicable surface.

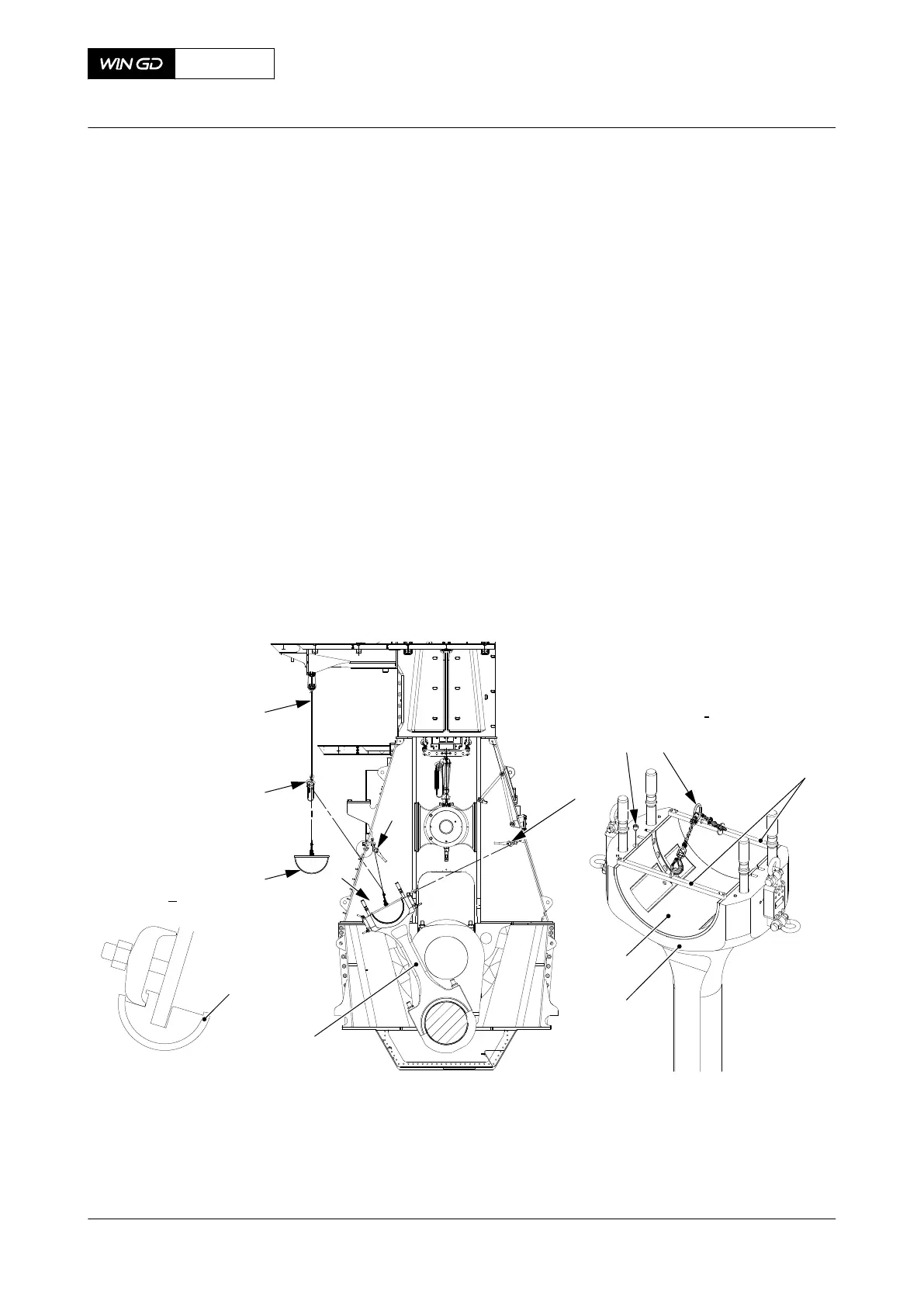

Fig 8-25 Top end bearing - remove
I
II
II
I
002
003
004
001
005
006
007
003
004
008
009 010
00766
CLOSE UP
• None
X72DF
AA00-3303-02AAA-520A-A
Maintenance Manual Connecting rod - remove the top end bearing
Winterthur Gas & Diesel Ltd.
- 399 - Issue 002 2020-10
