46.2 Attach the chain (008) to the eye bolts (005).
46.3 Attach the shackle (011) to an applicable position on the column.
46.4 Attach the lever chain hoist (010) to the shackle (011) and the chain (008).
46.5 Operate the lever chain hoist (010) to apply tension to the chain.
46.6 Operate the lever chain hoist (010) to move the crosshead pin (007) away from
the guide shoe (006 or 009).

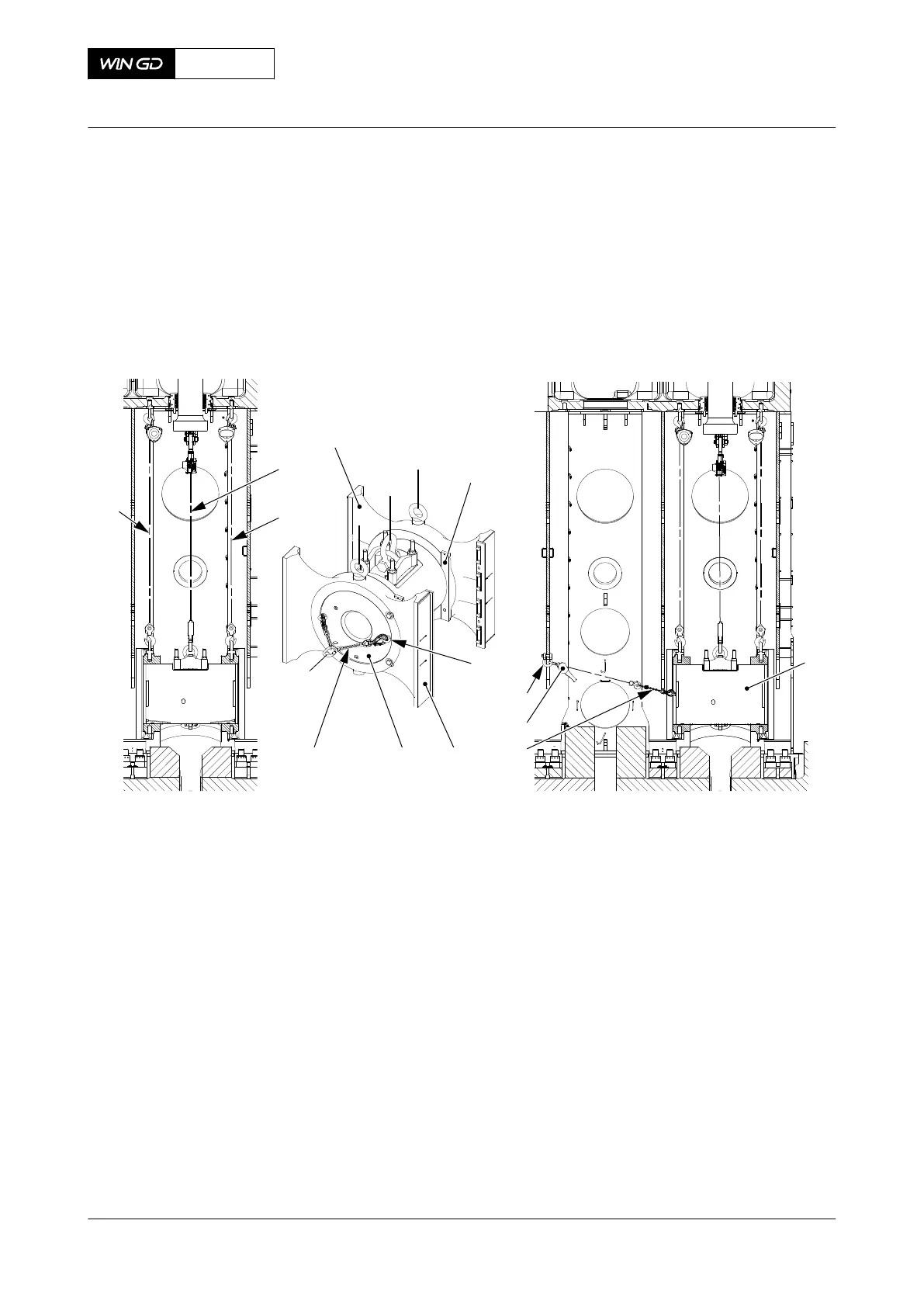

Fig 8-53 Crosshead - move
001
002
005
006007
008
009
004
008
007
010
011
00748
003
46.7 Operate the chain block (001, Figure 8-54) to lift the guide shoe (003).
46.8 Remove the chain (008, Figure 8-53), eye bolts (005), shackle (011) and lever
chain hoist (010).
46.9 Attach the eye bolts (005) to the other end of the crosshead pin (007).
46.10 Attach the shackle (011) to an applicable position on the column.
46.11 Attach the lever chain hoist (010) to the shackle (011) and the chain (008).
46.12 Do Step 46.1 to Step 46.8 for the other guide shoe.
47 When the crosshead pin is in the first or last cylinder position, do as follows:
47.1 Attach the eye bolt (008, Figure 8-54) to an applicable hole in the column.
47.2 Attach the lever chain hoist (007) to the eye bolt (008) and the shackle on the
lifting tool (006).
47.3 Operate the lever chain hoist (007) to move the crosshead pin (009) from the
guide shoe (004).
47.4 Operate the chain block (005) to lift the guide shoe (004).
47.5 Remove the lever chain hoist (007) and the eye bolt (008).
47.6 Attach the eye bolt (008) to the other side of the column.
47.7 Do Step 47.2 to Step 47.5 for the other guide shoe (003).
