WinGD X62DF User Manual

3.4.6 Exhaust valve

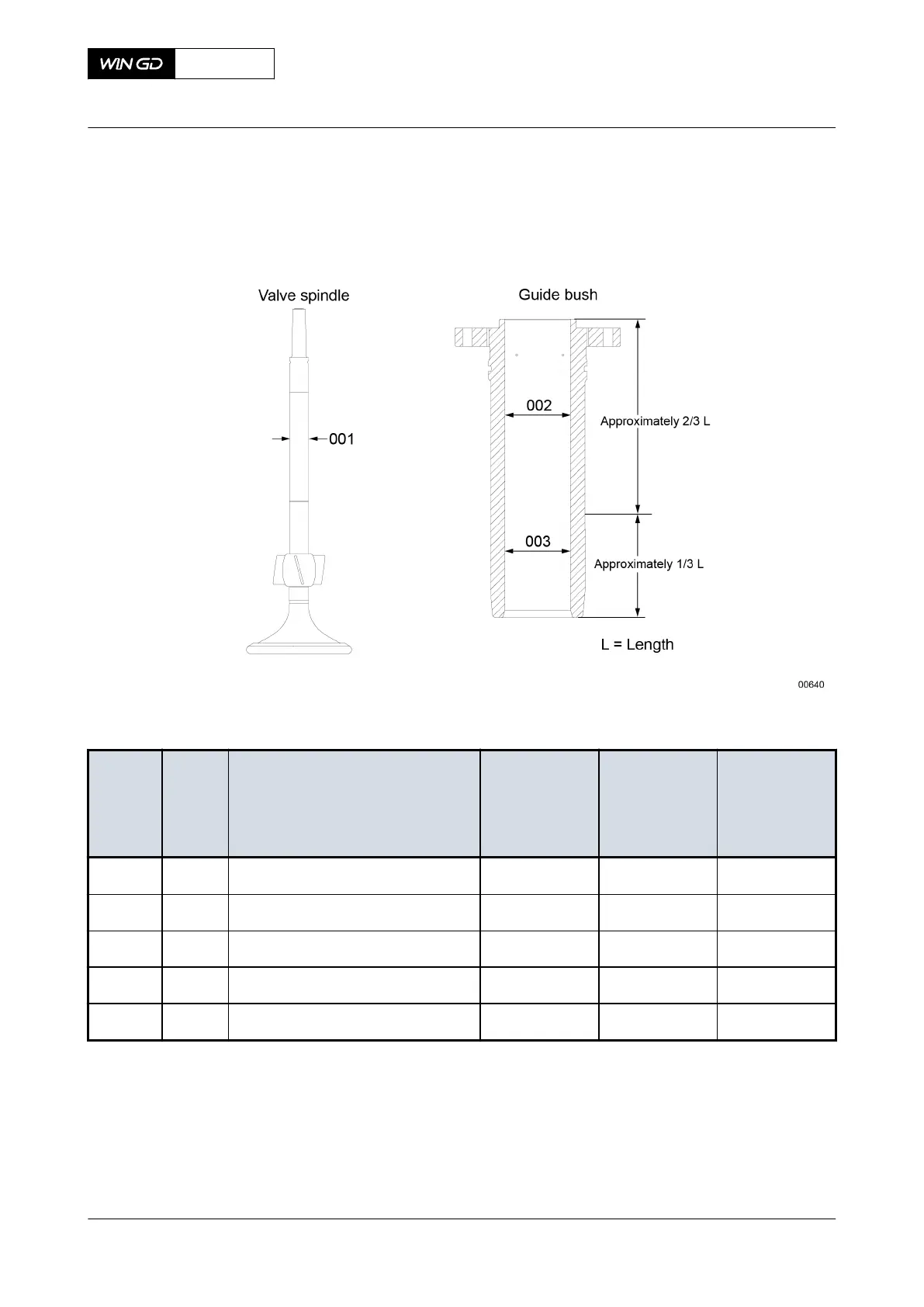

Fig 3-8 Exhaust valve
Tab 3-8 Exhaust valve - spindle and guide bush
Location
code
Key Item Measured di-
rection
Nominal di-
mension (usu-
al, new) [mm]
Maximum
clearance di-
mension (be-
cause of wear)
[mm]
2754 Valve spindle
001 Spindle Outer diameter
70
-0.26
-0.29
69.50
2751 Guide bush
*002 Bore Inner diameter
70
+0.03
-0.0
70.40
*003 Bore Inner diameter
70
+0.03
-0.0
71.25
NOTE: * = Measure the guide bush bore at the locations shown.
X72DF
AA00-0000-00AAA-034C-A
Maintenance Manual Clearances
Winterthur Gas & Diesel Ltd.
- 70 - Issue 002 2020-10
