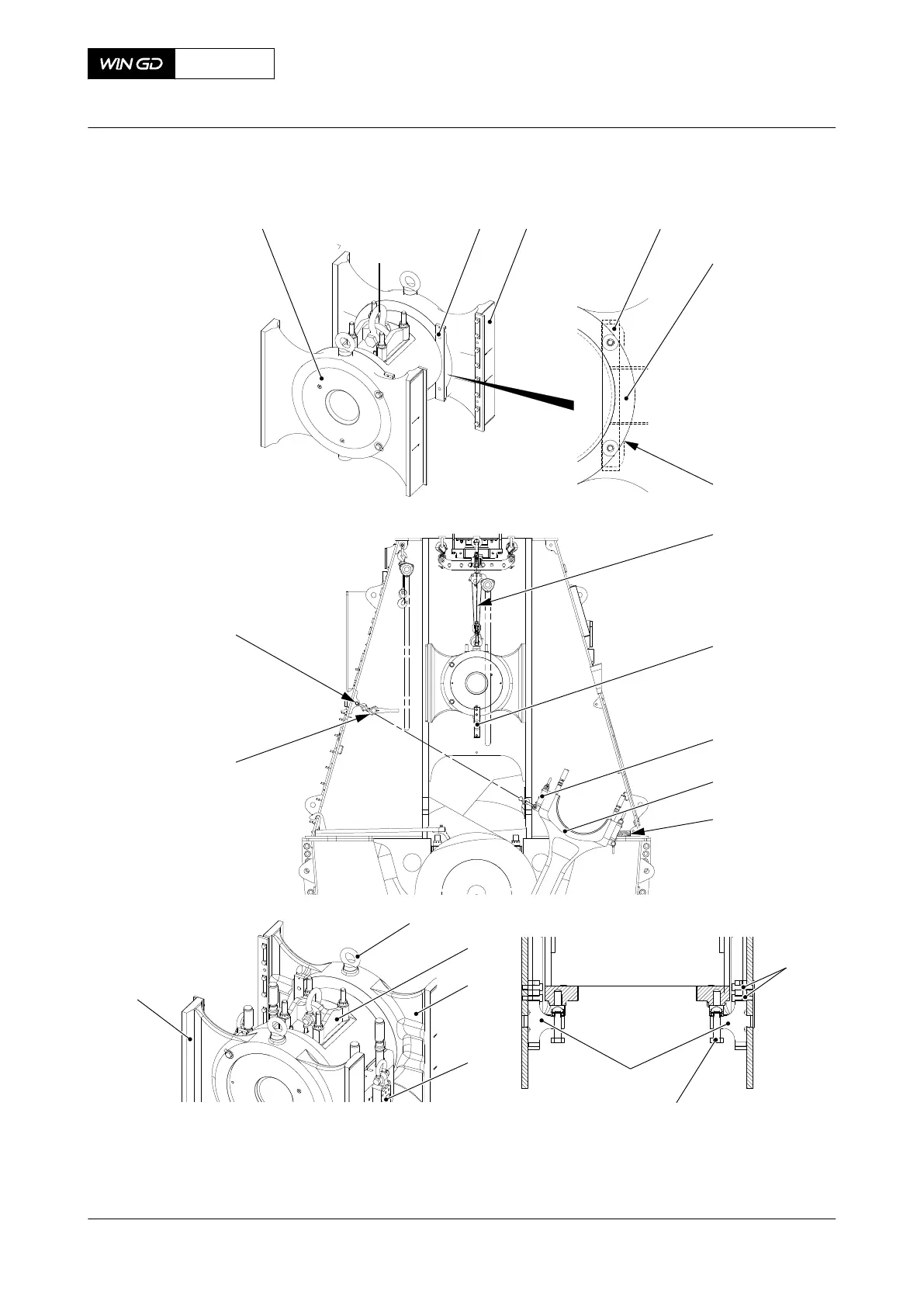

Fig 8-62 Connecting rod - move
001 002003 001
002
NO CLEARANCE
004
005
006
007
008
009
010
011
012
013
002
014
015
016
006
017
00756
FUEL SIDE
46 Install the platform to top of the crosshead.
47 Attach the lever chain hoist (012, Figure 8-63) to the shackle (008) and the platform.
X72DF
AA00-3326-00AAA-720A-A
Maintenance Manual Crosshead - install
