WinGD X62DF User Manual

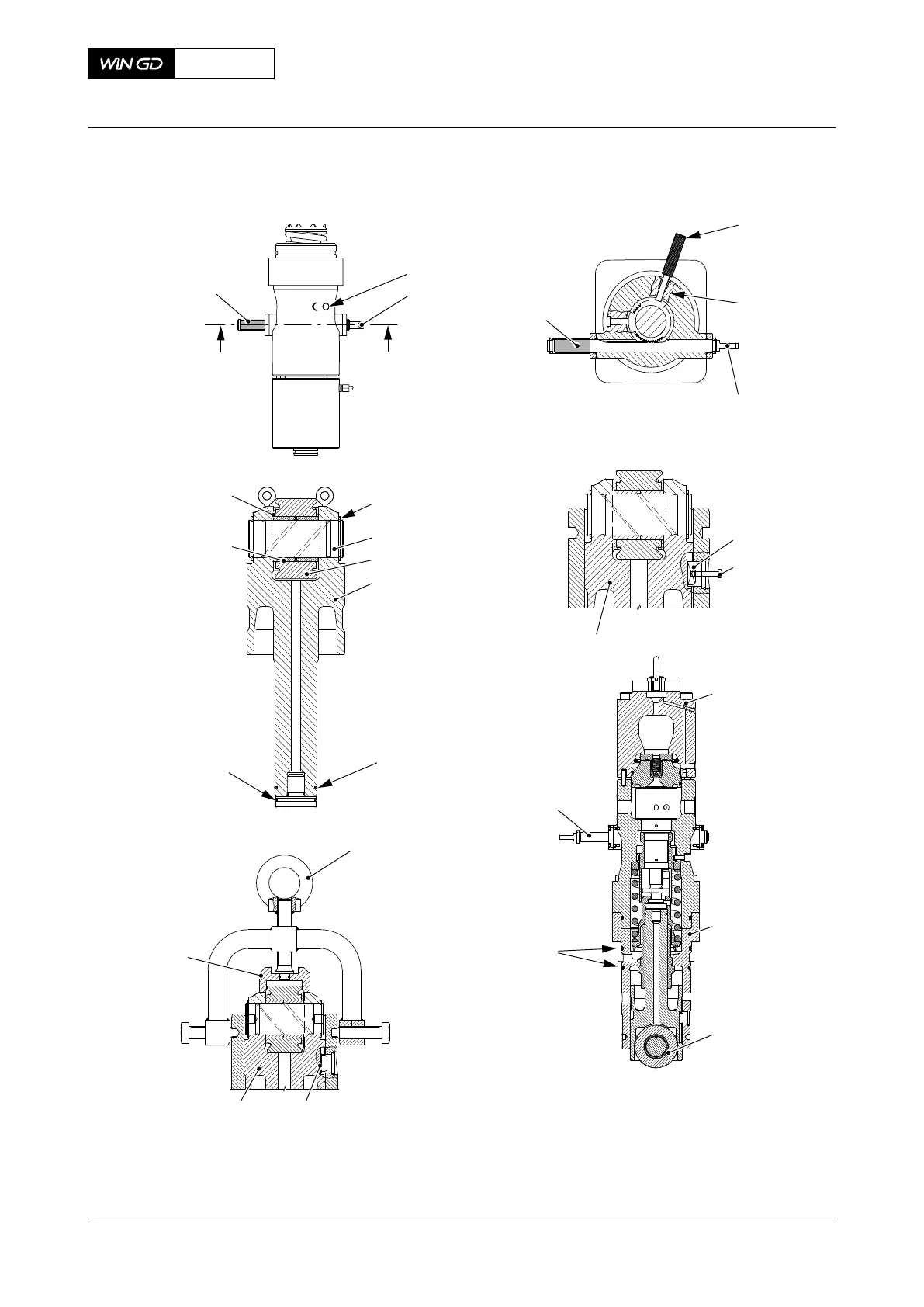

Fig 10-17 Plunger position check
016
013
012
011
002
005
013
017
004
006
008
007
007
010
008
007
018
008
014
002
009
00431
I
I
002
I - I
015
003
003
001
001
10 To do a check the plunger position, do the steps that follow:
10.1 Move the toothed rack (002, Figure 10-17) to the position shown.
10.2 Put the spacer (003) in the position shown.
X72DF
AA00-5556-00AAA-710A-A
Maintenance Manual Fuel pump - assemble
Winterthur Gas & Diesel Ltd.
- 565 - Issue 002 2020-10
