Xerox Phaser 790 User Manual

10/00
4-20
Phaser 790/DocuColor 2006
REP 4.7, REP 4.8
Initial Issue
Repairs and Adjustments
REP 4.7 Rotary Motor
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Rotary Motor (Figure 1).
Replacement
CAUTION
Be careful not to pinch the harness when reinstalling the Rotary Motor.
1. Reinstall the Rotary Motor in the reverse order of removal.

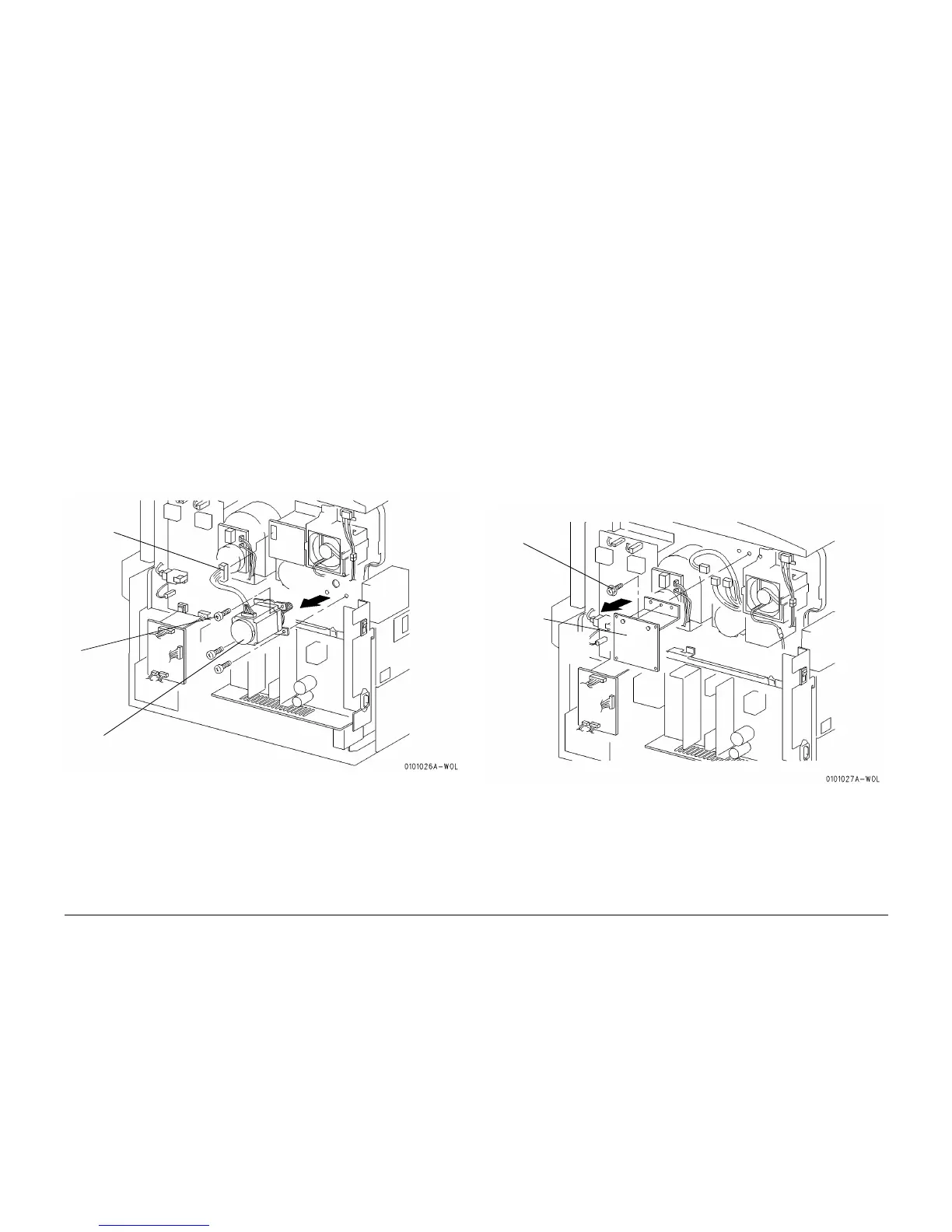

Figure 1 Removing the Rotary Motor
REP 4.8 Rotary Motor PWB
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
CAUTION
The Rotary Motor PWB and printer remain connected by a harness. Be careful not to pull too
far apart while performing the removal steps.
3. Remove the Rotary Motor PWB (Figure 1).
Replacement
1. Reinstall the Rotary Motor PWB in the reverse order of removal.
Figure 1 Removing the Rotary Motor PWB
1
Disconnect the
connector
2
Remove the
screws
3
Remove the Rotary
Motor
1
Remove the
screw
2
Separate the
Rotary Motor
PWB away
from the printer
3
Disconnect the
connectors
4
Remove the
Rotary Motor
PWB
