Xerox Phaser 790 User Manual

10/00
4-113
Phaser 790/DocuColor 2006
REP 10.1, REP 10.2
Repairs and Adjustments
Initial Issue
REP 10.1 Fuser Assembly
Parts List on PL 8.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Exit Tray Assembly (REP 8.30).
3. Remove the Fuser Assembly (Figure 1).
Replacement
1. Reinstall the Fuser Assembly in the reverse order of removal.

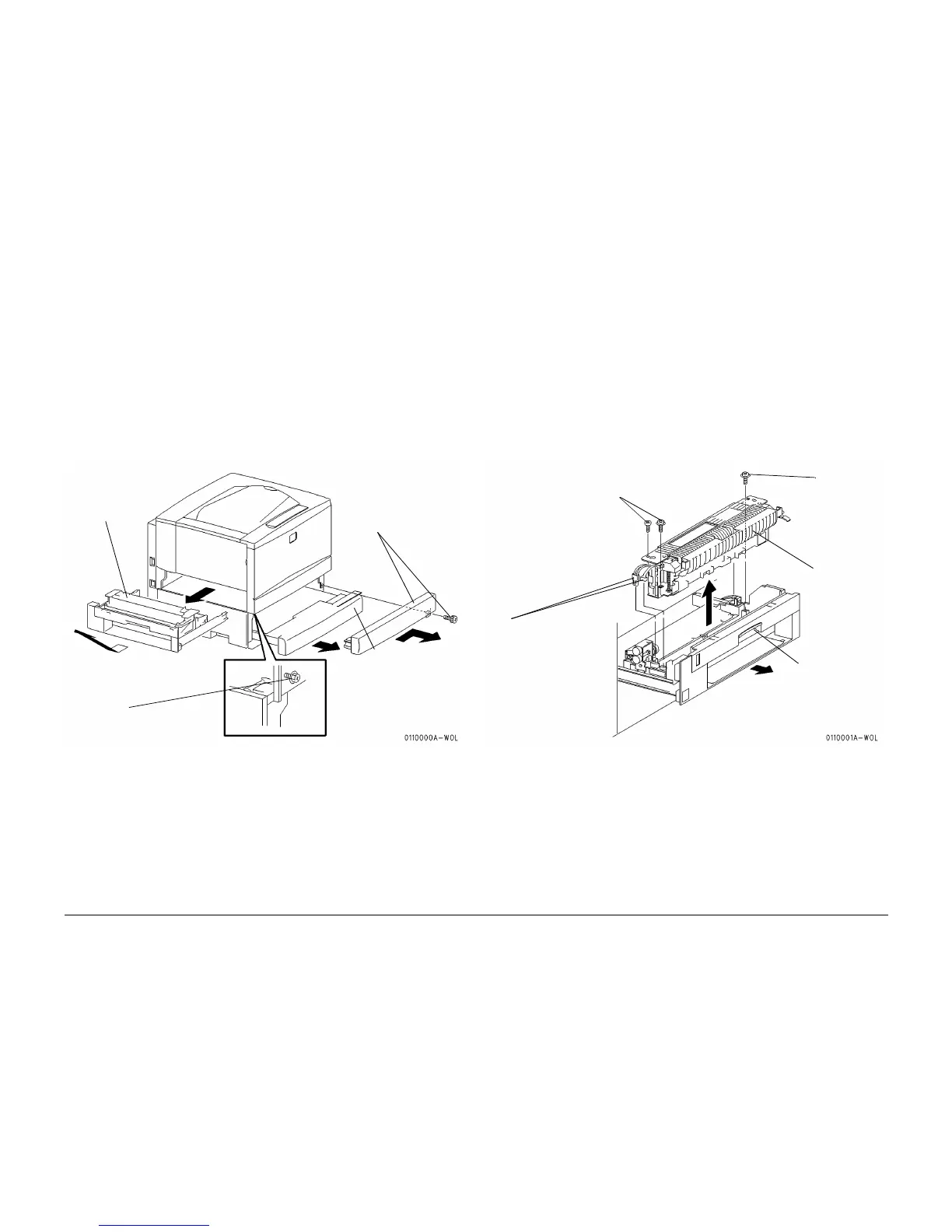

Figure 1 Removing the Fuser Assembly
REP 10.2 Main Fuser Assembly
Parts List on PL 8.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Main Fuser Assembly (Figure 1).
Replacement
1. Reinstall the Main Fuser Assembly in the reverse order of removal.
2. Reset the Main Fuser Assembly counter (refer to Section 6, General Procedures).
Figure 1 Removing the Main Fuser Assembly
4
Pull out and lift
diagonally to
remove the Fuser
Assembly
1
WITHOUT DUPLEX
TRAY OPTION:
Remove screw and
remove the cover
2
WITH DUPLEX
TRAY OPTION:
Open the Duplex
Tray
3
Remove the screw
2
Disconnect the
connectors
3
Remove the rear
screws
5
Remove the
Main Fuser
Assembly
4
Remove the
front screw
1
Open the Fuser
Assembly
