Xerox Phaser 790 User Manual

10/00
5-49
Phaser 790/DocuColor 2006
PL 13.7
Parts List
Initial Issue

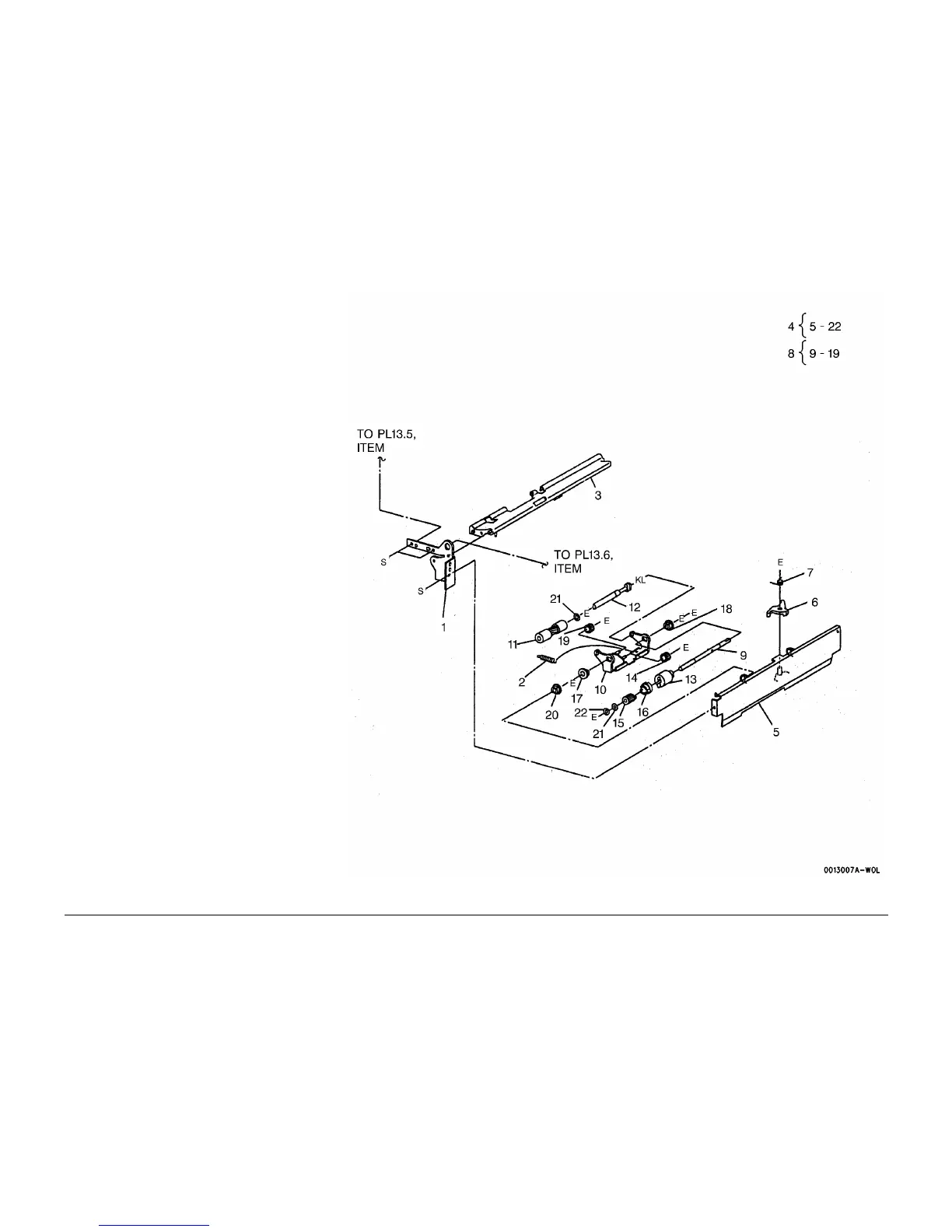

PL 13.7 Optional Feeder Assembly (7
of 9)
Item Part Description
1 – Front Frame (P/O PL 13.5 Item 1)
2 – Spring (P/O PL 13.5 Item 1)
3 – Lower Chute (P/O PL 13.5 Item 1)
4 – Lower Frame Assembly (P/O PL
13.5 Item 1)
5 – Lower Frame (P/O PL 13.5 Item 1)
6 – Retard Lever (P/O PL 13.5 Item 1)
7 – Spring (P/O PL 13.5 Item 1)
8 – Retard Assembly (P/O PL 13.5 Item
1)
9 – Retard Shaft (P/O PL 13.5 Item 1)
10 – Retard Support (P/O PL 13.5 Item
1)
11 059K08840 Retard Roll
12 – Shaft (P/O PL 13.5 Item 1)
13 – Friction Clutch (P/O PL 13.5 Item
1)
14 – Gear (P/O PL 13.5 Item 1)
15 – Gear (P/O PL 13.5 Item 1)
16 – Collar (P/O PL 13.5 Item 1)
17 – Bearing (P/O PL 13.5 Item 1)
18 – Bearing (P/O PL 13.5 Item 1)
19 – Gear (P/O PL 13.5 Item 1)
20 – Bearing (P/O PL 13.5 Item 1)
21 – Nylon Washer (P/O PL 13.5 Item 1)
22 – E-Ring (P/O PL 13.5 Item 1)
