Xerox Phaser 790 User Manual

10/00
5-38
Phaser 790/DocuColor 2006
PL 9.2
Initial Issue
Parts List

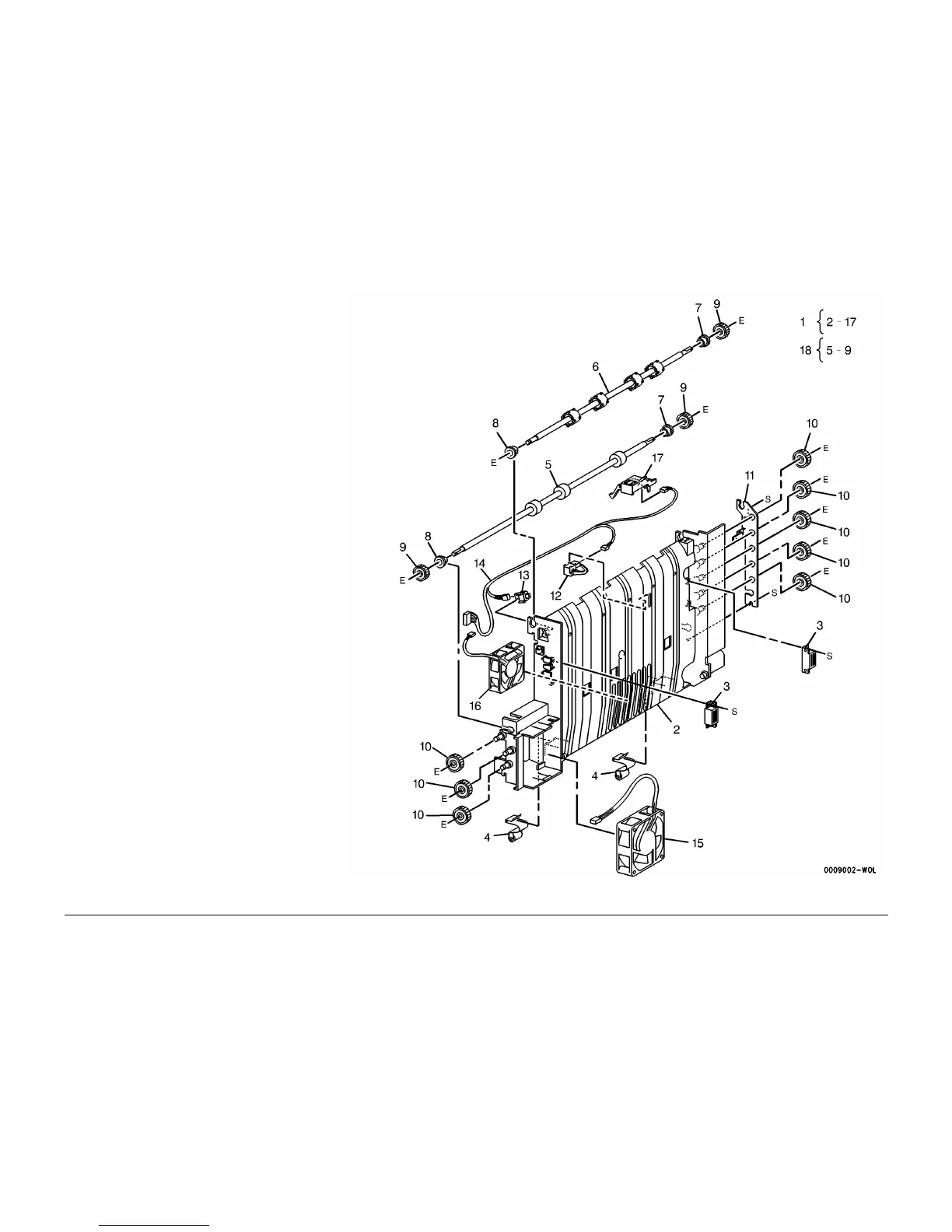

PL 9.2 Paper Exit (2 of 2)
Item Part Description
1 – Exit Transport Assembly (Not
Spared)
2 – Exit Chute (Not Spared)
3 – Catch Magnet (Not Spared)
4 – Pinch Roll (Not Spared)
5 – Lower Exit Roll (P/O PL 9.2 Item
18)
6 – Upper Exit Roll (P/O PL 9.2 Item
18)
7 – Bearing (P/O PL 9.2 Item 18) (2/Kit)
8 – Bearing (P/O PL 9.2 Item 18) (2/Kit)
9 – Gear (P/O PL 9.2 Item 18) (3/Kit)
10 – Gear (P/O PL 9.2 Item 18) (8/Kit)
11 – Front Plate (Not Spared)
12 130E82730 Top Exit Sensor (REP 8.43)
13 110E93440 Exit Chute Interlock (REP 8.42)
14 – Harness (Not Spared)
15 127E81940 Fuser Fan
16 127E81951 Exit Chute Fan
17 130K61311 Full Stack Sensor (REP 8.41)
18 600K68750 Exit Upper Roller Kit
