10/00
4-126
Phaser 790/DocuColor 2006
REP 10.18
Initial Issue
Repairs and Adjustments
REP 10.18 Fuser Entrance Sensor
Parts List on PL 8.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Fuser Assembly (REP 10.1).
3. Prepare to remove the Fuser Entrance Sensor (Figure 1).

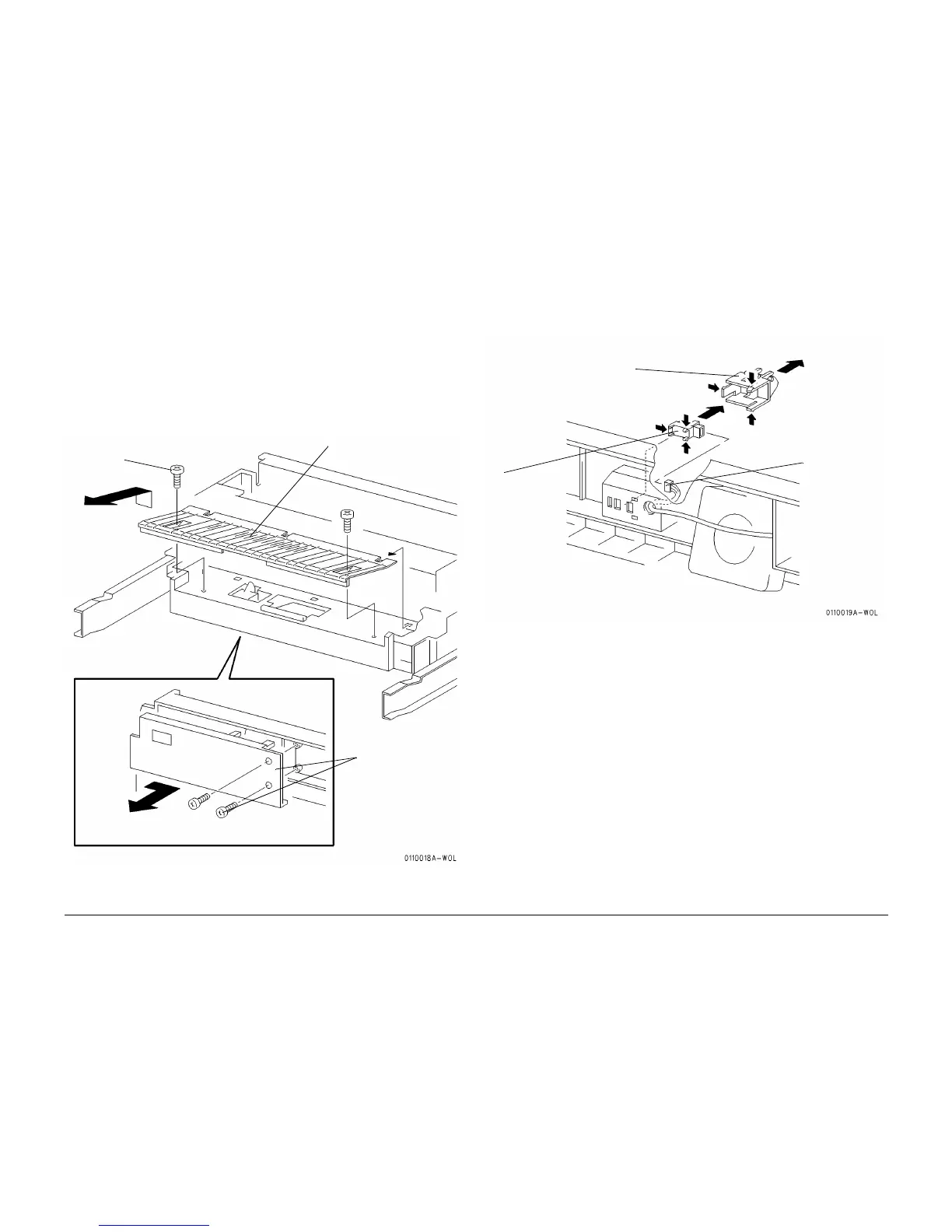

Figure 1 Preparing to Remove the Fuser Entrance Sensor
4. Remove the Fuser Entrance Sensor (Figure 2).
Replacement
1. Reinstall the Fuser Entrance Sensor in the reverse order of removal.
Figure 2 Removing the Fuser Entrance Sensor
2
Remove the Fuser Paper
Guide and Horizontal Chute
1
Remove the screws
3
Remove the screws,
and then remove
the Bottom Cover
1
Disengage and
remove the Sensor
Bracket
2
Disconnect the
connector
3
Disengage and
remove the
Fuser Entrance
Sensor
