Xerox Phaser 790 User Manual

10/00
4-25
Phaser 790/DocuColor 2006
REP 5.4
Repairs and Adjustments
Initial Issue
REP 5.4 Feed Roll
Parts List on PL 17.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the ADF Front Cover.
3. Remove the ADF Rear Cover.
4. Remove the Lower Chute. (Figure 1)

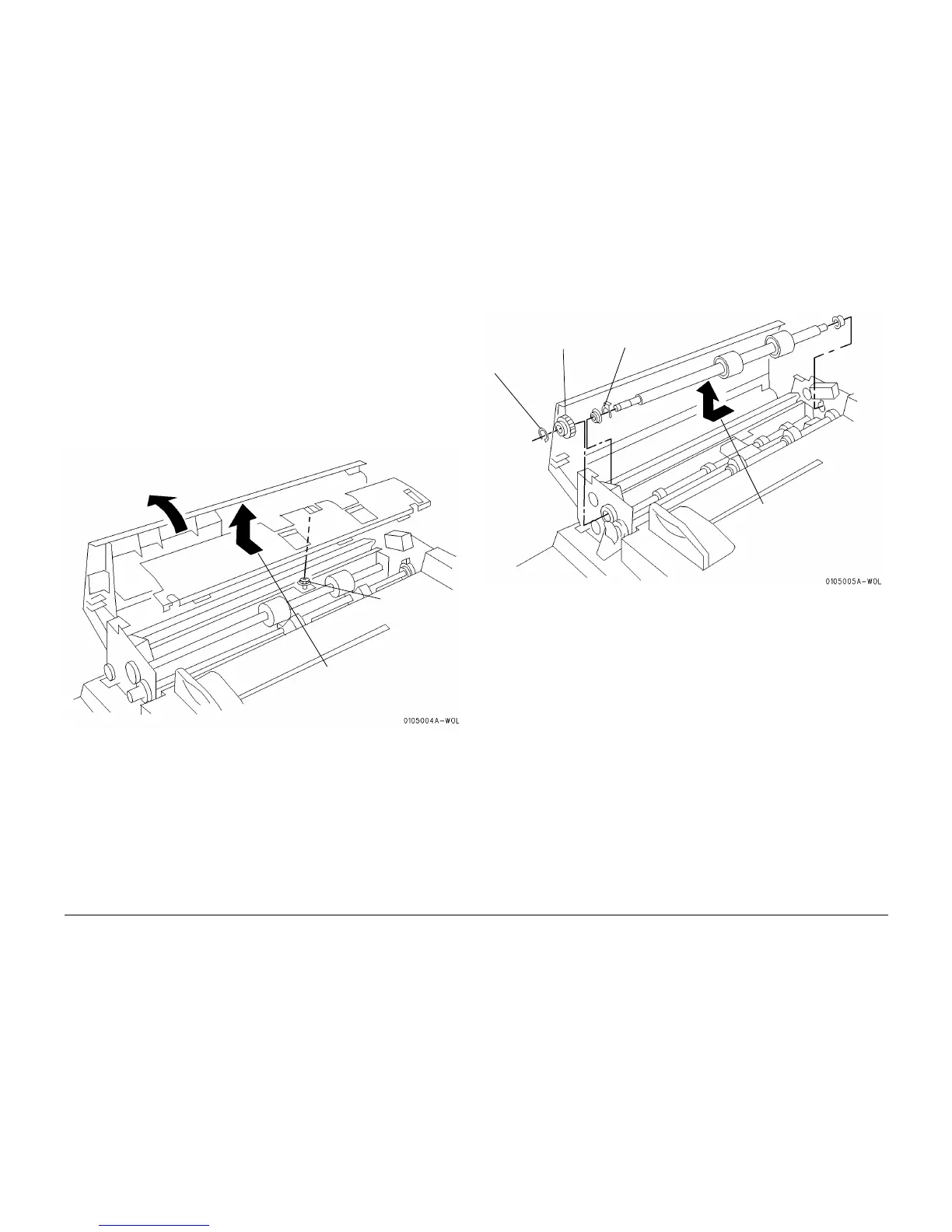

Figure 1 Removing the Lower Chute
5. Remove the Feed Roll. (Figure 2)
Figure 2 Removing the Feed Roll
1
Open the Feeder
Cover
2
Loosen the screw
3
Remove the Lower Chute by
moving the chute in the direction
indicated
1
Remove the
KL-Clip
2
Remove the
Gear
3
Remove the
KL-Clip
4
Remove the Feed Roll
(together with bearings) by
moving it in the direction
indicated
