Xerox Phaser 790 User Manual

10/00
4-133
Phaser 790/DocuColor 2006
REP 11.7, REP 11.8
Repairs and Adjustments
Initial Issue
REP 11.7 Sorter Path Sensor
Parts List on PL 19.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bottom Cover (REP 11.2).
3. Remove the Sorter Path Sensor (Figure 1).

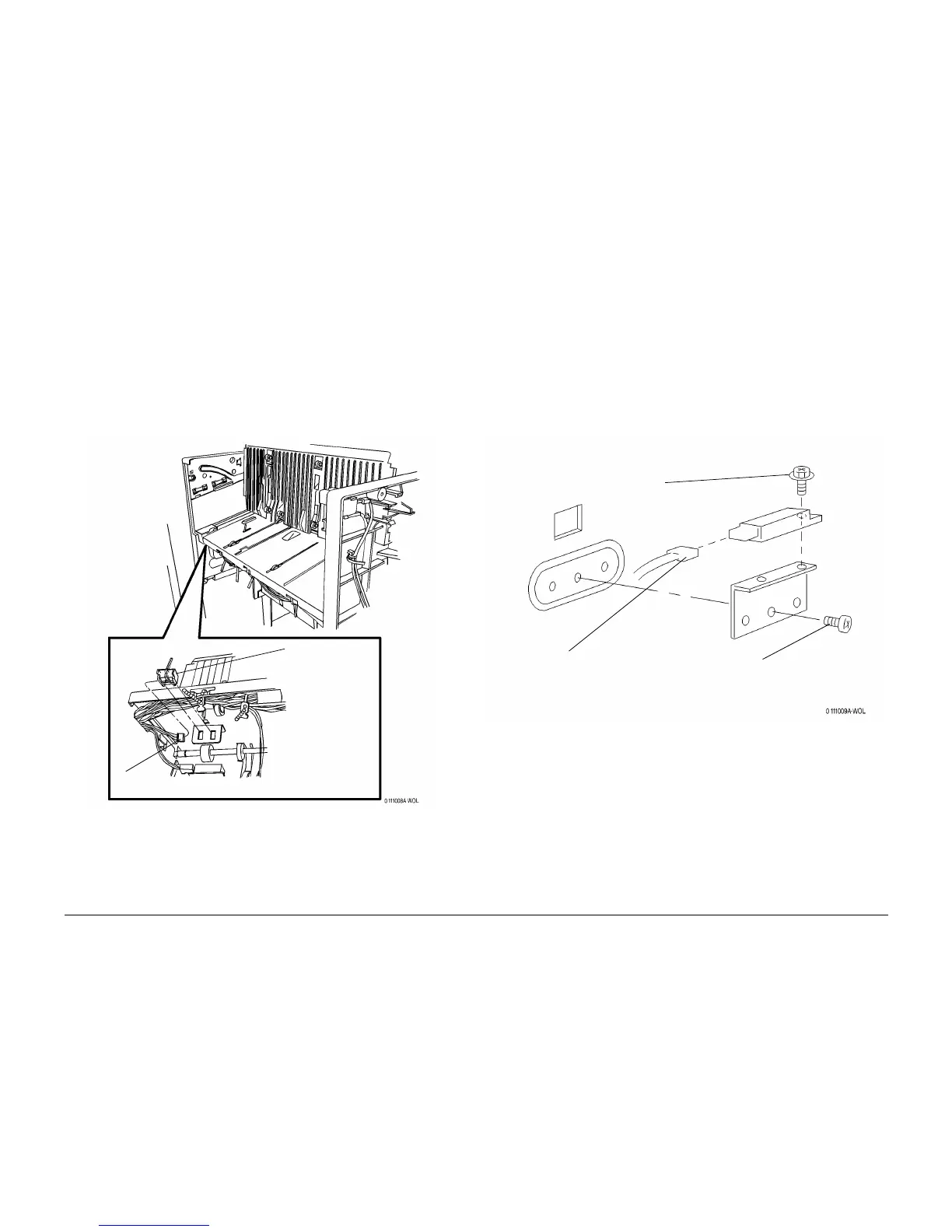

Figure 1 Removing the Sorter Path Sensor
Replacement
1. Perform the procedure for removal in reverse.
REP 11.8 Full Sensor
Parts List on PL 19.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Bottom Cover (REP 11.2).
3. Remove the Full Sensor (Figure 1).
Figure 1 Removing the Full Sensor
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect the connector
2
Release the locking
tabs and remove the
Sorter Path Sensor
Viewed from below
1
Disconnect the
connector
2
Remove the screw and
sensor bracket
3
Remove the screw
and the Full Sensor
