10/00
5-14
Phaser 790/DocuColor 2006
PL 3.3
Initial Issue
Parts List

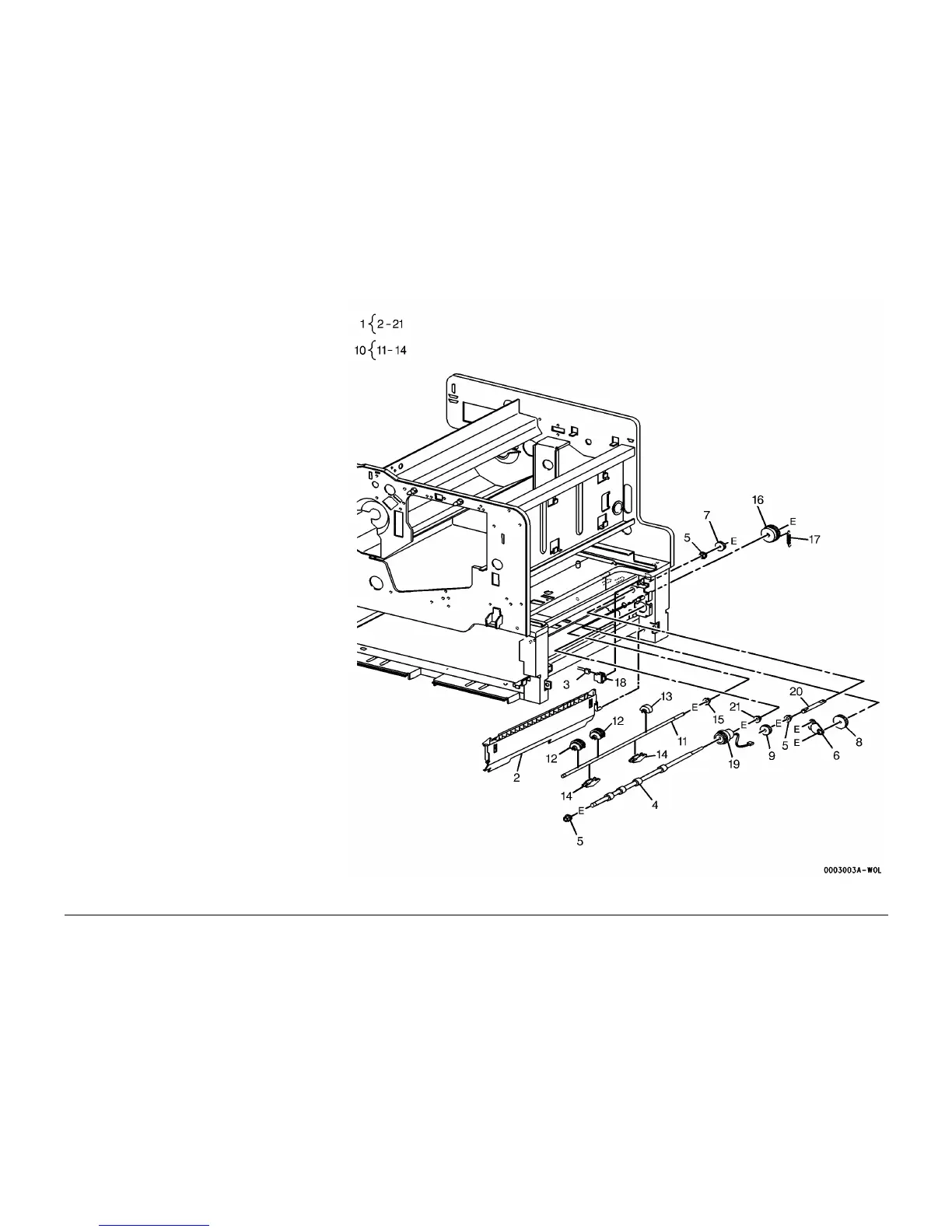

PL 3.3 Tray 1 Paper Feeder (3 of 3)
Item Part Description
1 – Feeder Assembly (Not Spared)
2 – Turn In Chute (Not Spared)
3 – Harness (Not Spared)
4 059K14390 Turn Roll (REP 8.1)
5 – Turn Front Bearing (Not Spared)
6 – Turn Gear Cover (Not Spared)
7 – Turn Gear S (Not Spared)
8 – Turn Gear M (Not Spared)
9 – Turn Gear D (Not Spared)
10 059K04840 Feed Roll Assembly (REP 8.3)
11 – Feed Shaft (P/O PL 3.3 Item 10)
12 Feed Roll Kit (REP 8.2)
13 – Feed Core Roll (P/O PL 3.3 Item
10)
14 – Feed Roll Guide (P/O PL 3.3 Item
10)
15 – Bearing (Not Spared)
16 – Feed Gear (Not Spared)
17 009E71750 Feed Spring
18 110E93440 Turn Chute Interlock
19 121K23790 Turn Clutch (REP 8.4)
20 – Turn Gear Shaft (Not Spared)
21 – Bearing (Not Spared)
To Next Page
